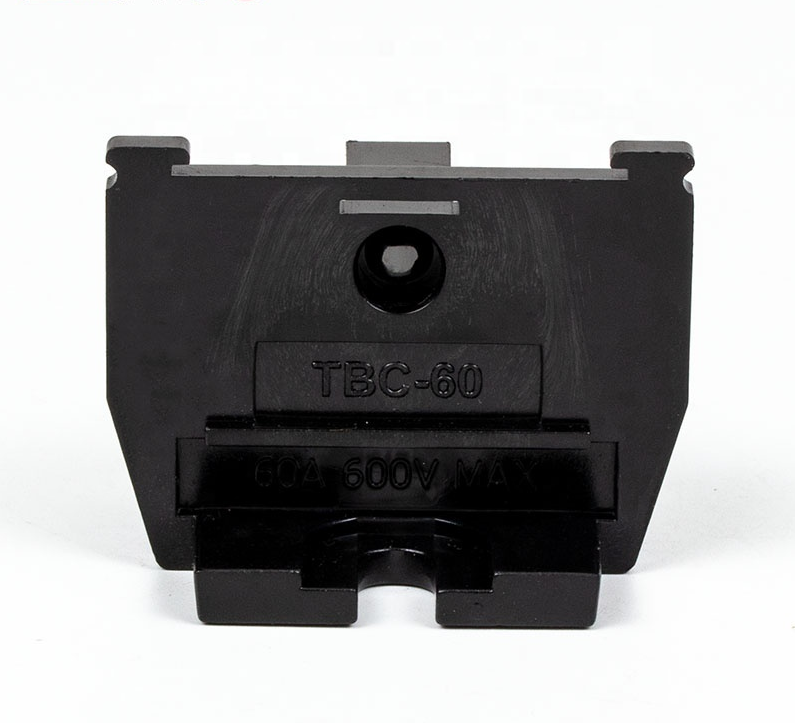

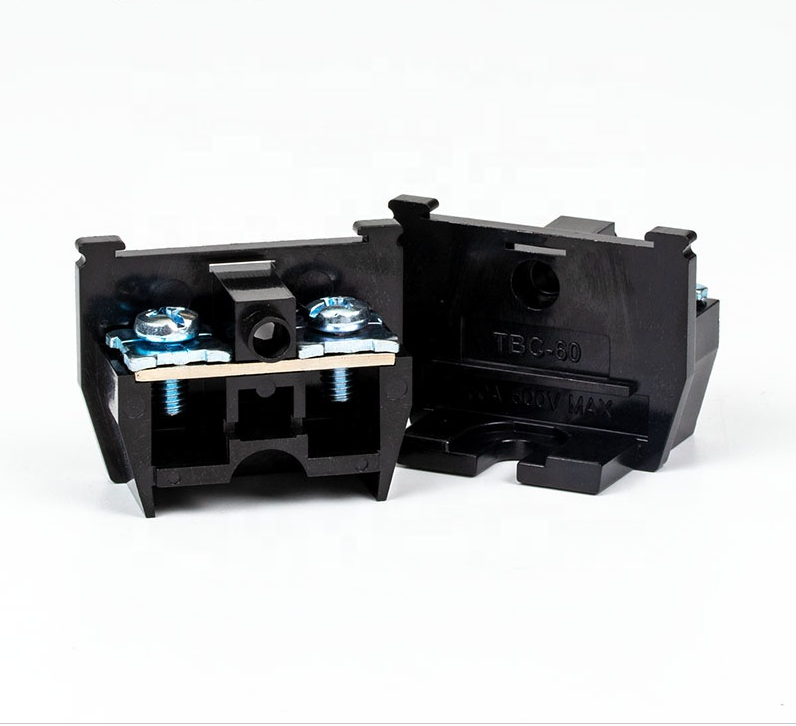

TBC-60A DIN Modular Terminal Block

TBC-60A DIN Modular Terminal Block

Electrical Performance

Rated current up to 60A, built with thickened high-purity brass conductor. Low contact resistance, strong load-bearing capacity and stable power conduction, perfect for high-current low-voltage circuits.

Modular Installation

Compatible with standard NS35 DIN rail, easy to mount and remove. Modular splicing design enables flexible combination. Reliable screw clamping fixes wires tightly, anti-loose and anti-vibration for steady use.

Safety & Application

Flame-retardant insulated body features outstanding heat resistance and insulation property. Durable and space-saving, widely used in power distribution cabinets, heavy-duty control systems and industrial electrical wiring.

Number of contact points：1 – 10                                  conductor size：8-11 AWG

type：screw                                                                      country of origin：Zhejiang, China

model：TBC-60A                                                             brand：LULEI

describe：Fence terminal                                                Part code：TBC-60A

Current：60A                                                                    Voltage：600V

compatible：4-10mm²                                                     AWG：11-8

Conductor materials：Brass/Iron                                  shell material：Plastic alloy

Screw material：iron                                                        DIN rail：24mm C-type
