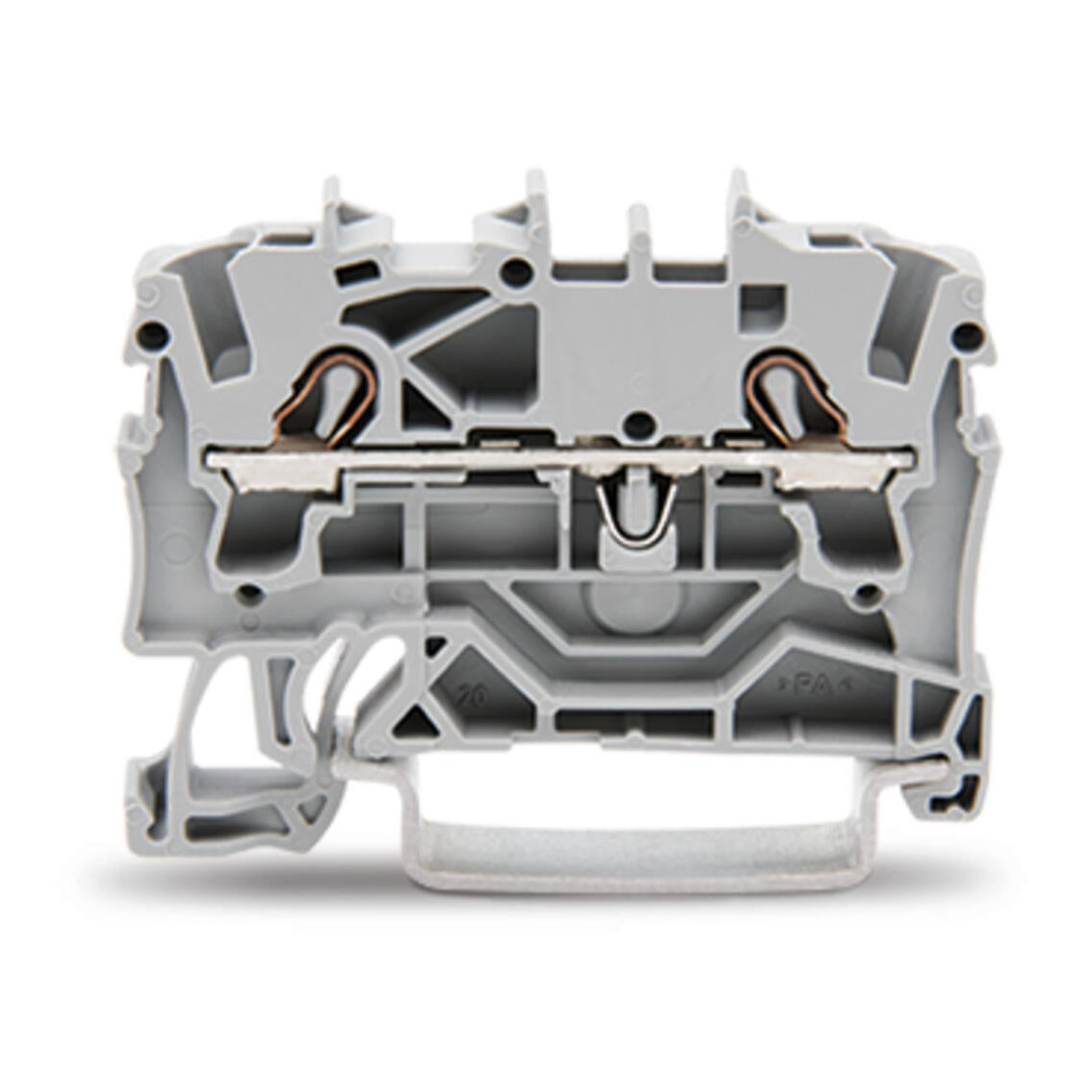

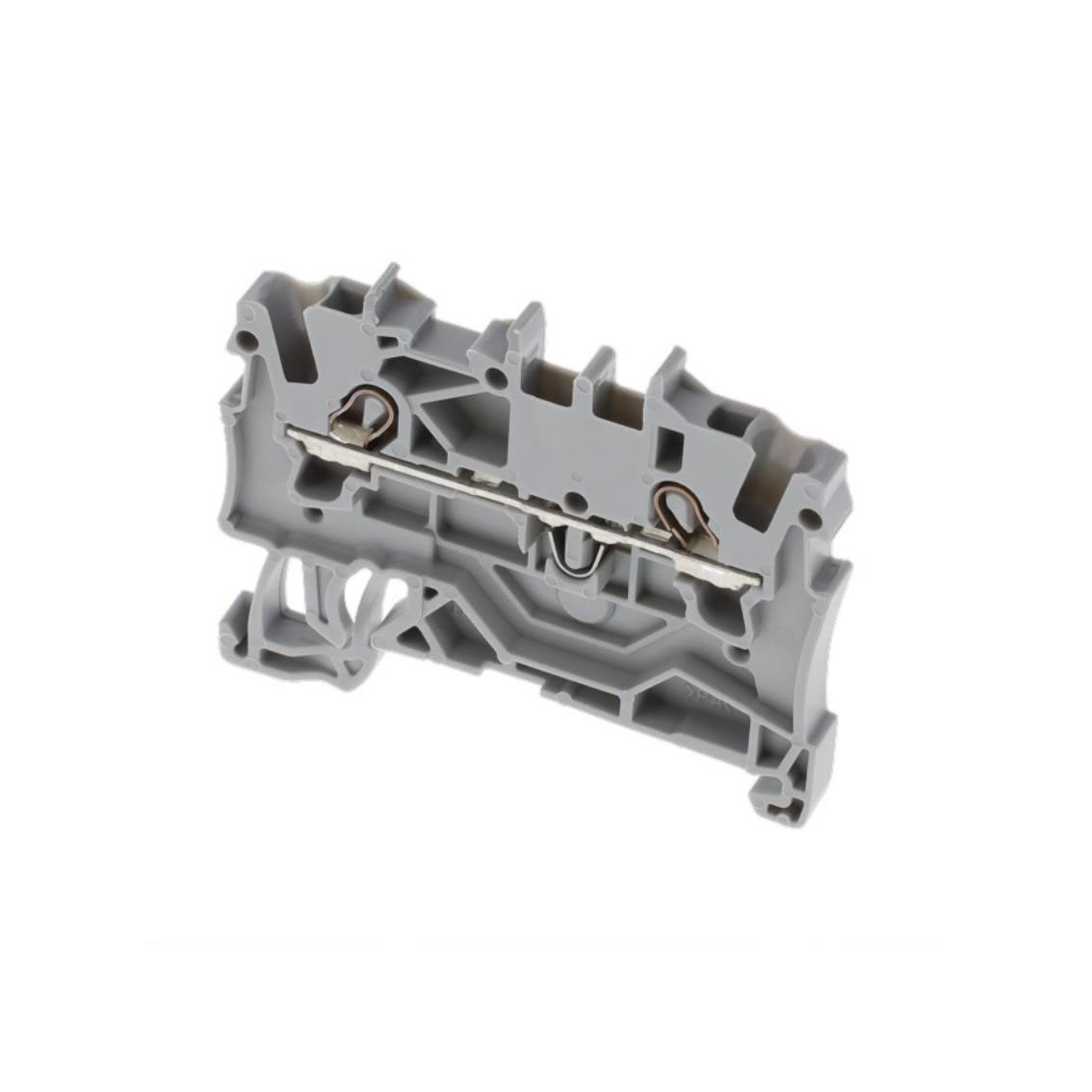

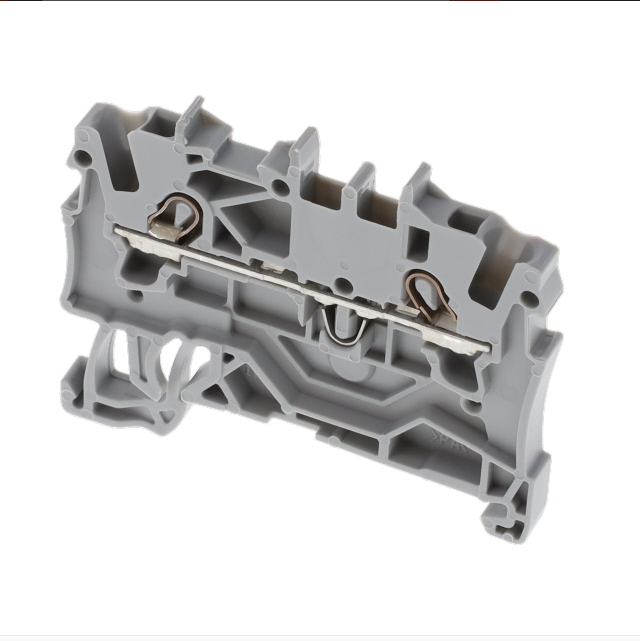

WAGO 2002-1201 Terminal Block
Stable Electrical Performance
This feed-through terminal block belongs to TOPJOB S series, rated 800V and 24A. It fits 2.5mm² standard wire, compatible with 0.25-4mm² cables. It meets strict industrial electrical standards, delivering stable current transmission and excellent load-bearing capacity.
Advanced Push-in Connection
Adopts professional CAGE CLAMP spring connection structure. It supports tool-free quick wiring for solid and flexible wires. The clamping design is anti-vibration and anti-loose, ensuring reliable contact and greatly improving installation and maintenance efficiency.
Reliable Industrial Application
It is designed for standard DIN rail mounting with compact gray flame-retardant housing. Equipped with marking slots for easy classification. It features high temperature resistance and safe insulation, widely used in power distribution, automation control and industrial electrical systems.
Maximum continuous current：24A Number of contact points：11 – 20
conductor size：11 – 20 AWG Connection method：Push-in connection
type：Rail-Mount Terminal Blocks Number of electrodes：2
Contact material：copper application：Spring clip terminal
country of origin：Tianjin, China model：2002-1201
brand：For WAGOS Nominal voltage：800V
Clamping units：2 Total number of potentials：1
Number of levels：1 Number of jumper slots：2
Actuation type：Operating tool Connectable conductor materials：Copper
Width：5.2 mm / 0.205 inches Height：48.5 mm / 1.909 inches
Depth：39.5 mm / 1.555 inches
