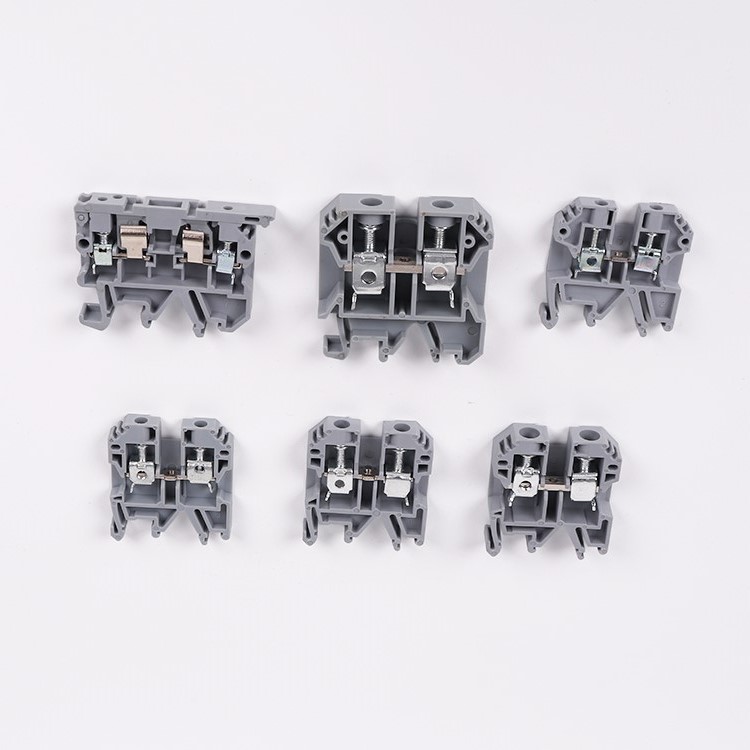

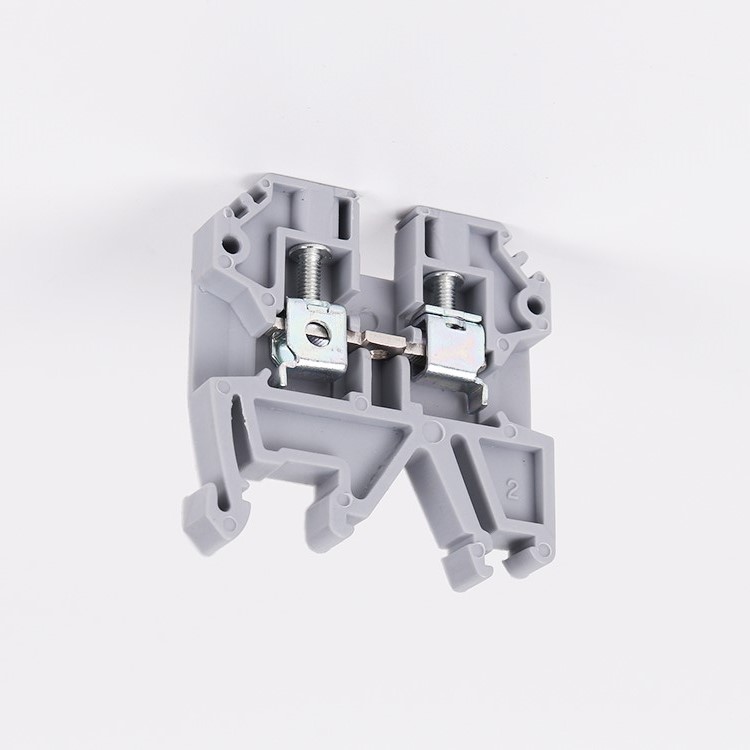

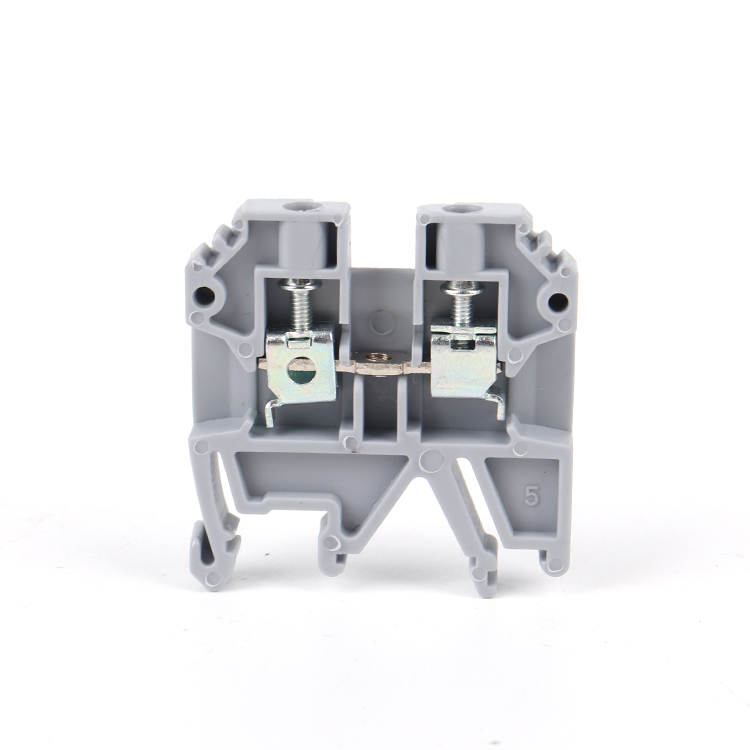

SAK 2.5EN JXB 2.535 Modular Universal Terminal Block
Standard Electrical Specification
This DIN rail terminal block is designed for 2.5mm² wire cross section. It features stable voltage and current rating, capable of bearing regular industrial load. It ensures smooth and safe power transmission for daily electrical connection work.
Modular Integrated Structure

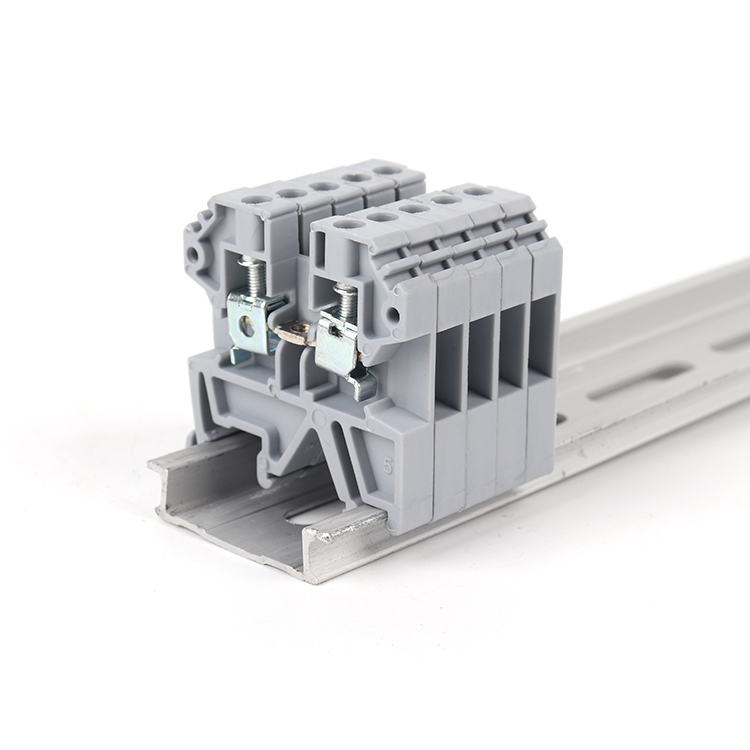

It adopts modular combined design, easy to assemble and disassemble freely. Standard DIN rail mounting structure enables quick installation on distribution boxes and control cabinets. The compact structure saves installation space with neat wiring arrangement.
Durable & Wide Application
Built with high strength flame retardant insulation shell, it owns good heat resistance and insulation property. Internal conductive parts are anti-oxidation with stable performance. It is widely used in power distribution, automation equipment and various industrial wiring systems.
Maximum continuous current：24A Number of contact points：1 – 10
conductor size：2.5 mm2 Connection method：Spring connection
type：screw Number of electrodes：2
Contact material：brass application：Industrial, wire connection
country of origin：Zhejiang, China model：JSAK 2.5EN
brand：WKDQ Application：Wire Connecting
Color：Yellow/Gay Product name：Terminal Block Connector
Certificate：CE/RoHS/CQC/ISO 9001 Rated voltage：800V
Wire Range：2.5mm² Material：PA66 / Copper
