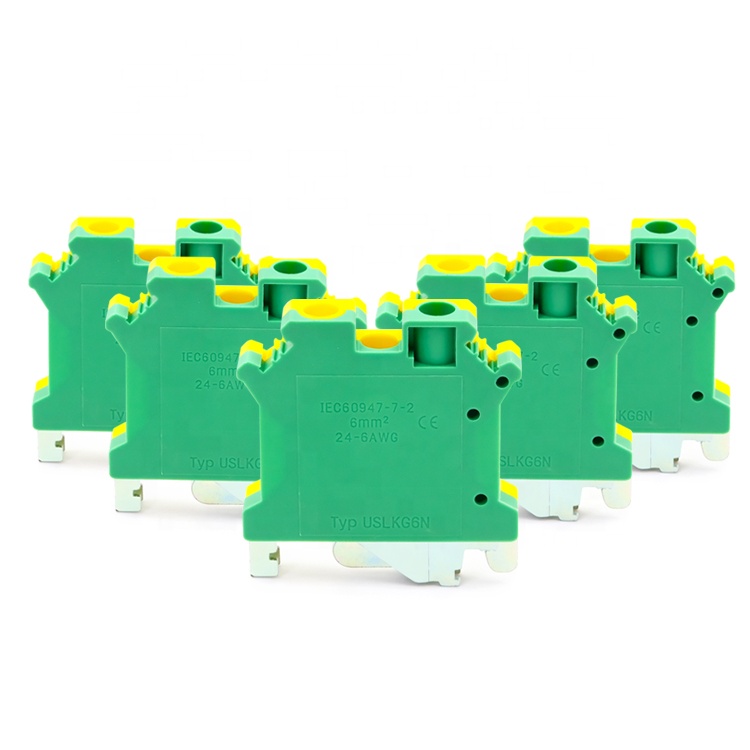

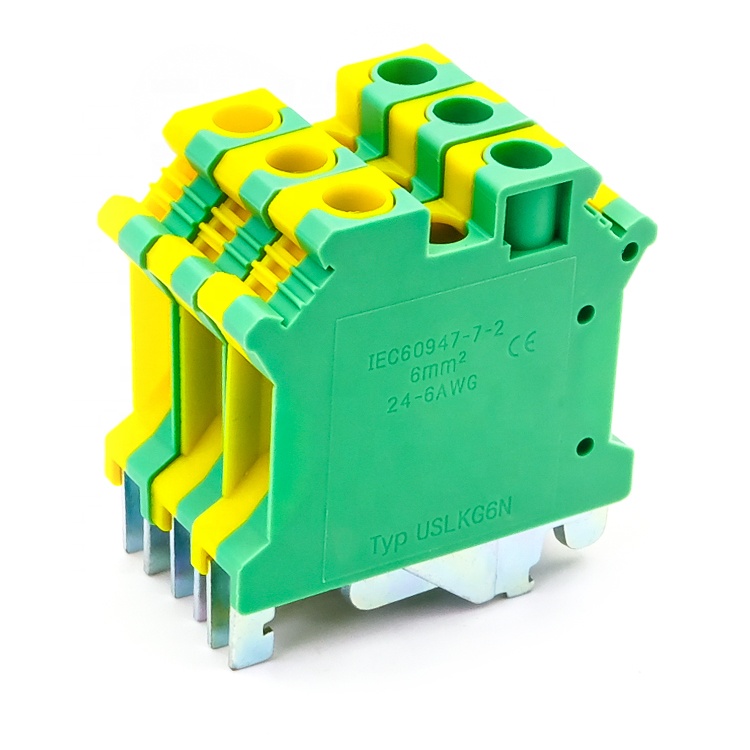

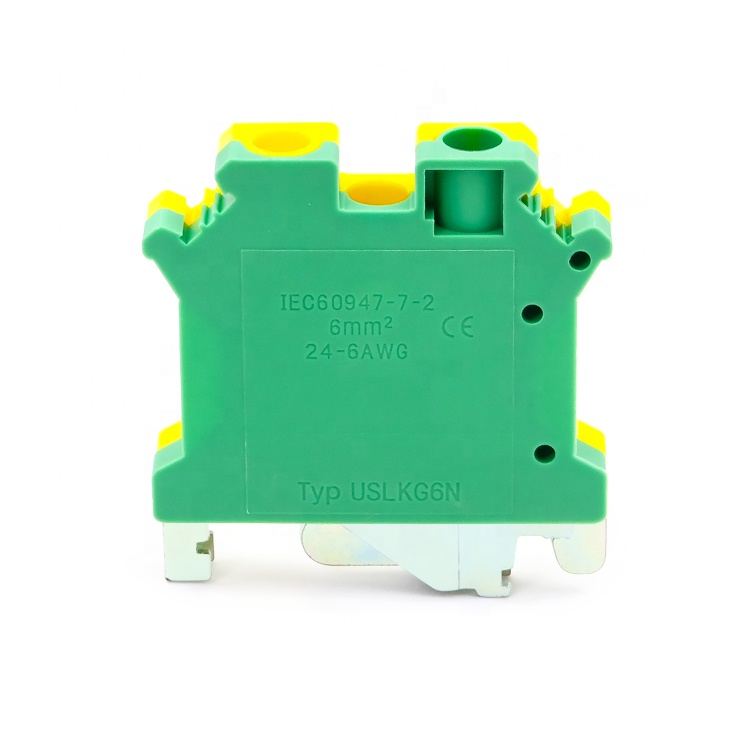

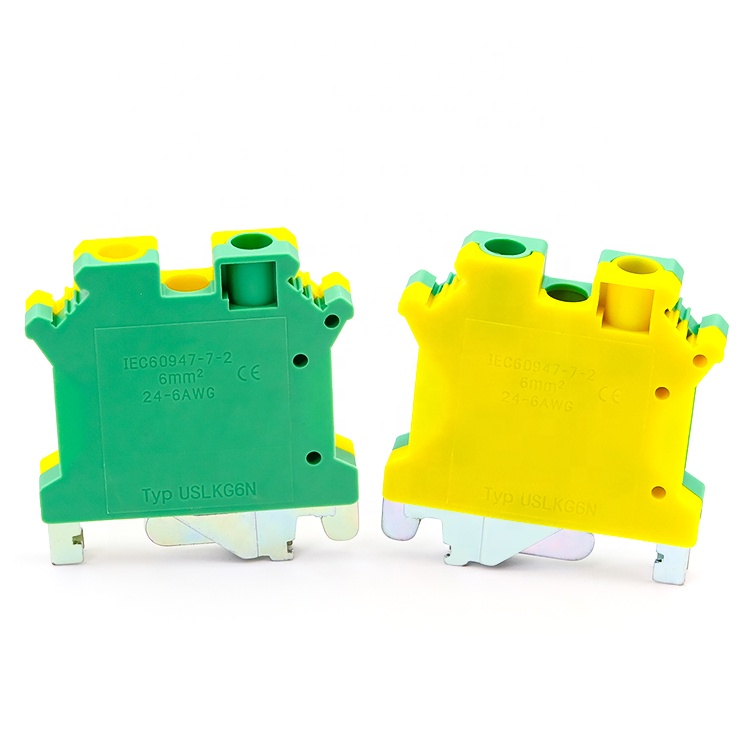

USLKG 6N Grounding Terminal Connector
Versatile Wire Range
USLKG 6N supports wires from 0.2–6mm² (24-8AWG), meeting diverse low-voltage grounding wiring requirements.
Stable Screw Connection
Screw clamping structure ensures firm wire fixing, realizing reliable protective grounding with good shock resistance.
Durable & Easy Installation
Polyethylene insulating housing offers insulation and corrosion resistance. Compatible with DIN rail and panel mounting for industrial electrical systems.
Number of contact points：1 – 10 conductor size：24-12AWG
type：screw country of origin：Zhejiang, China
model：USLKG 6N brand：W.DE
model：USLKG 6N color：Gray, blue, and other colors are available upon request.
Connection method：Screw connection Length/Height/Width (mm)：L42.5/H46.2/W8.2 mm
Material：Nylon PA66 Rated voltage/current：800V/57A
Installation type：NS 35/7.5 Solid/flexible cable cross-section：0.2-10mm ²/0.2-6mm ²
Certificate：CE/RoHS/CQC/ISO 9001 project：Guide rail panel mounting terminal connector
