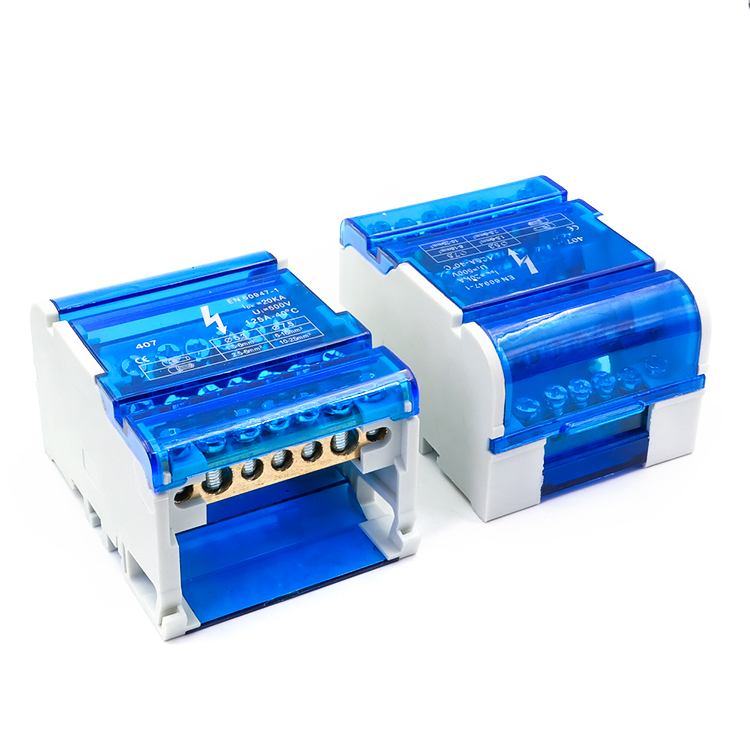

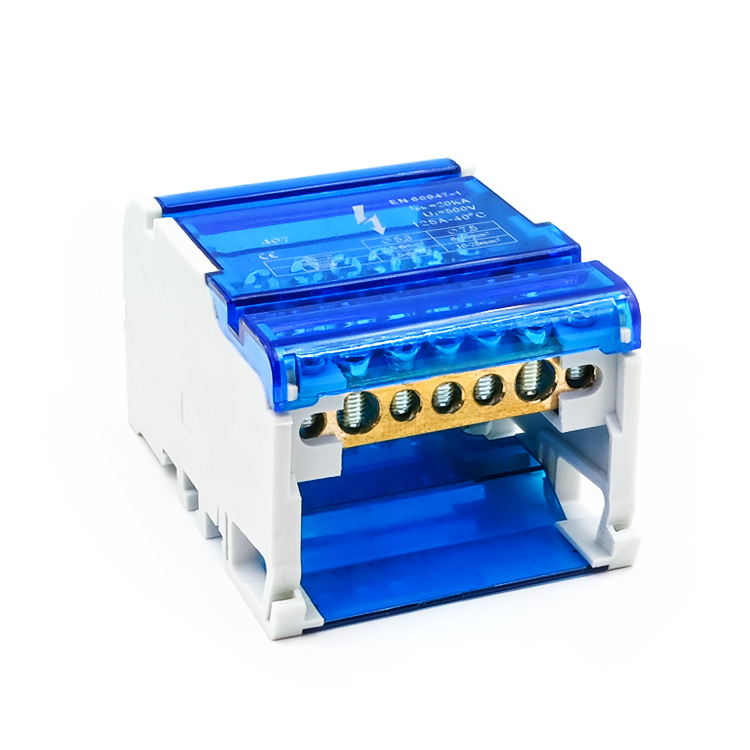

407 DIN Rail Terminal Distribution Module

Electrical Performance

Rated voltage 500V AC/DC, rated current 125A. Built with high-purity brass busbar, excellent conductivity and low contact resistance, ensures stable power transmission for heavy load circuits.

Structural Feature

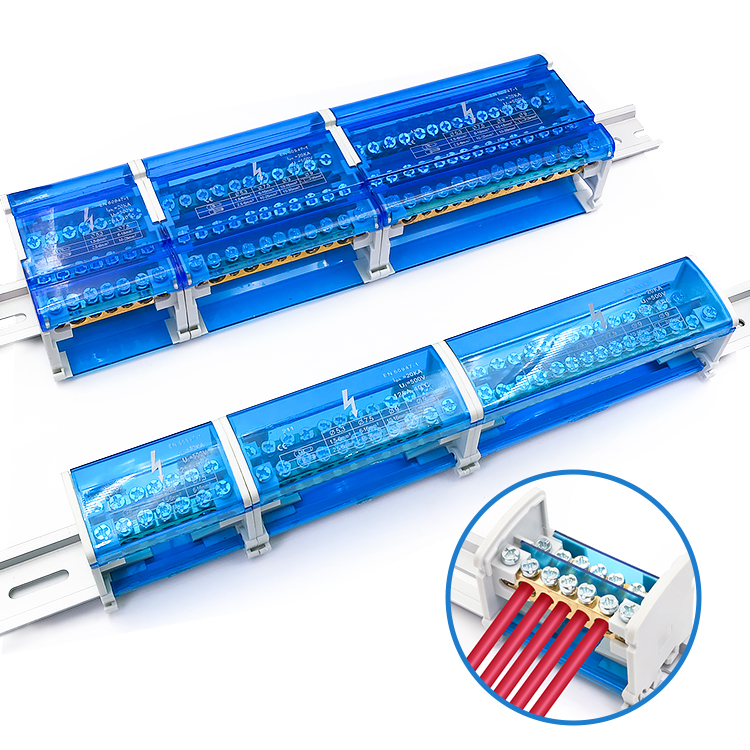

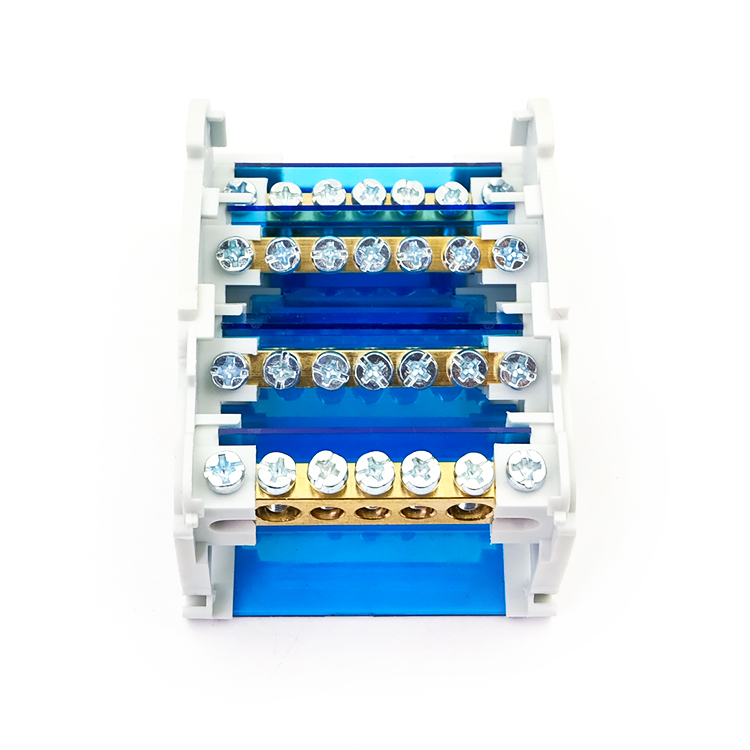

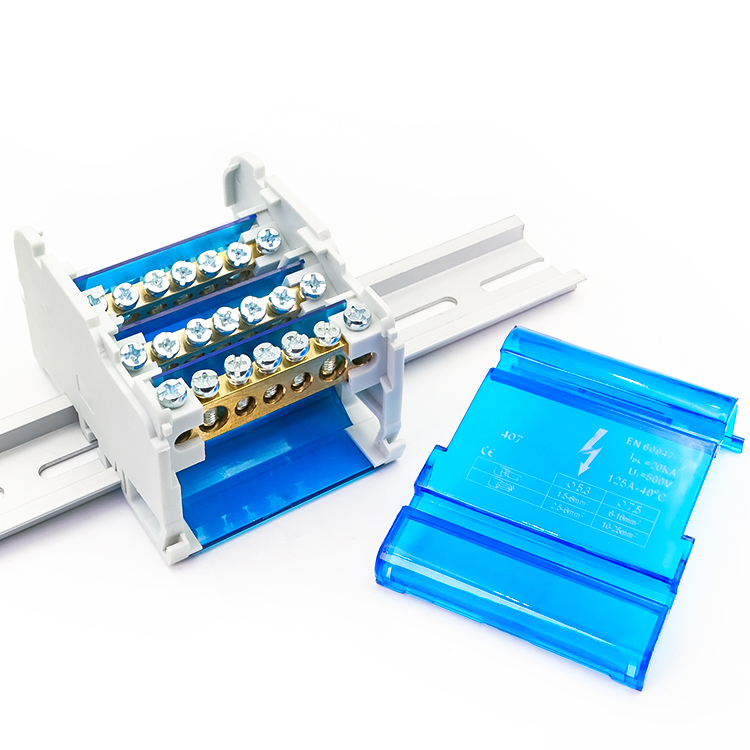

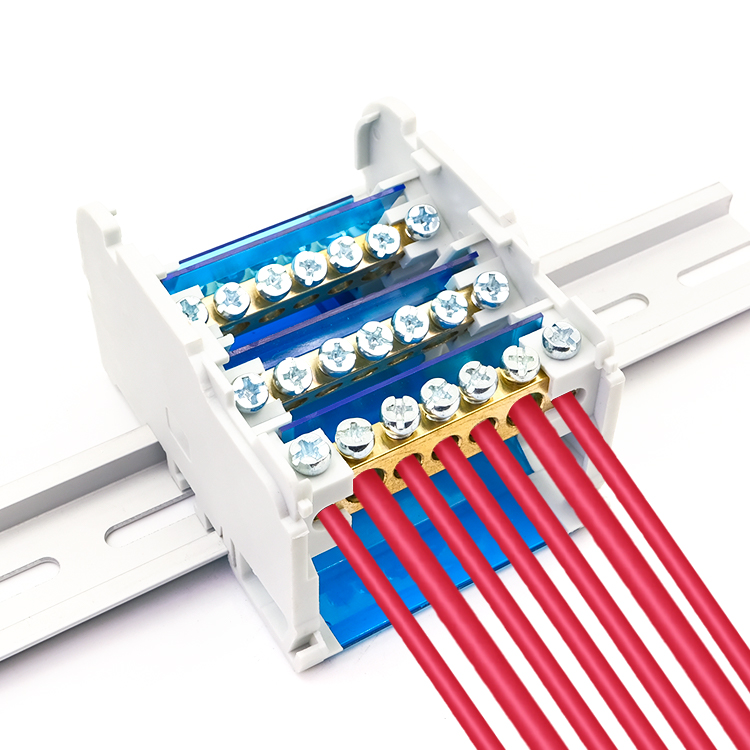

Unique 4-input 14-output design, perfect for multi-group power distribution. Compatible with standard NS35 DIN rail, easy to install and disassemble. Equipped with transparent protective cover for dustproof and insulation. Screw clamping structure locks wires tightly, anti-vibration and anti-loose.

Safety & Application

Made of high strength flame retardant material, great heat resistance and insulation property. Durable and reliable for long-term use. Suitable for distribution cabinets, automation equipment, electrical control systems and other centralized wiring distribution occasions.

Maximum continuous current：125A Number of contact points：1 – 10

conductor size：11 – 20 AWG Connection method：Screw connection

type：screw Number of electrodes：other

Contact material：brass application：Industrial, automotive, wire connection

country of origin：Zhejiang, China model：407

brand：LULEI model：407

Installation type：DIN rail NS 35/7.5 color：Gray and blue are available; other colors can be customized

app：Distribution panel Certificate：CE/RoHS/CQC/ISO 9001

Number of holes：4*7 brass rod：6.5 x 12 mm

Rated voltage/current：500V Material：Flame-retardant nylon PA66, brass conductor

project：Distribution Din rail insulated terminal block
