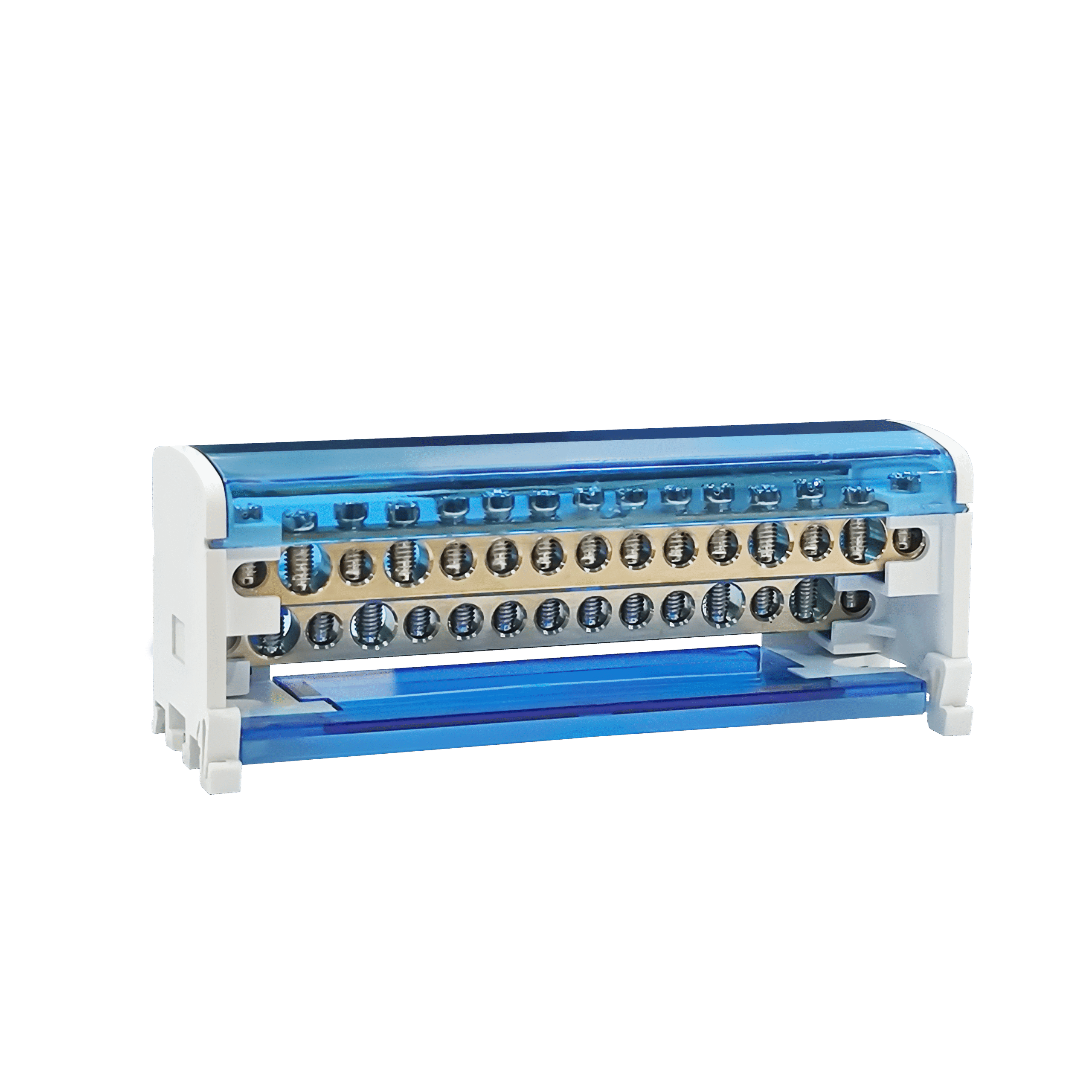

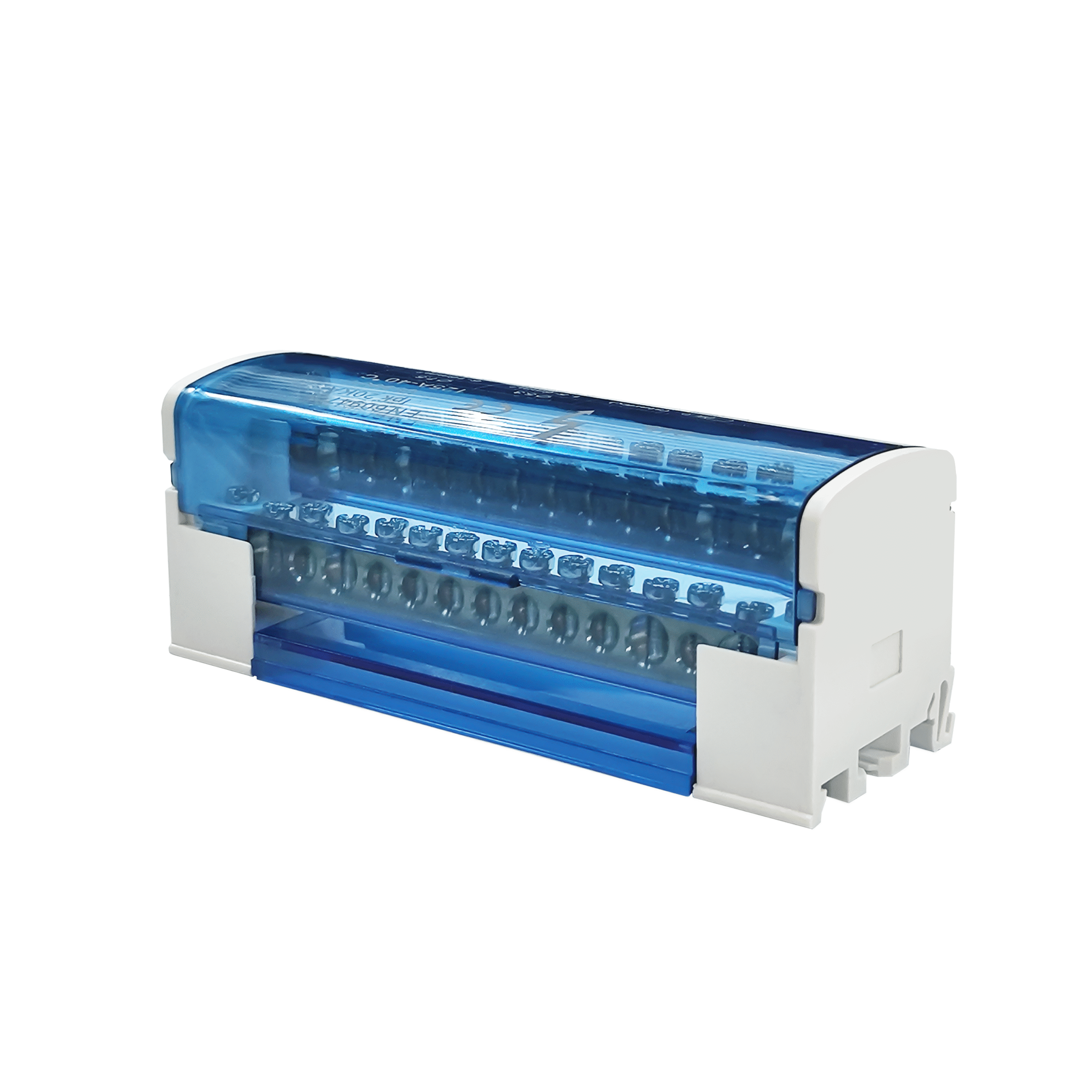

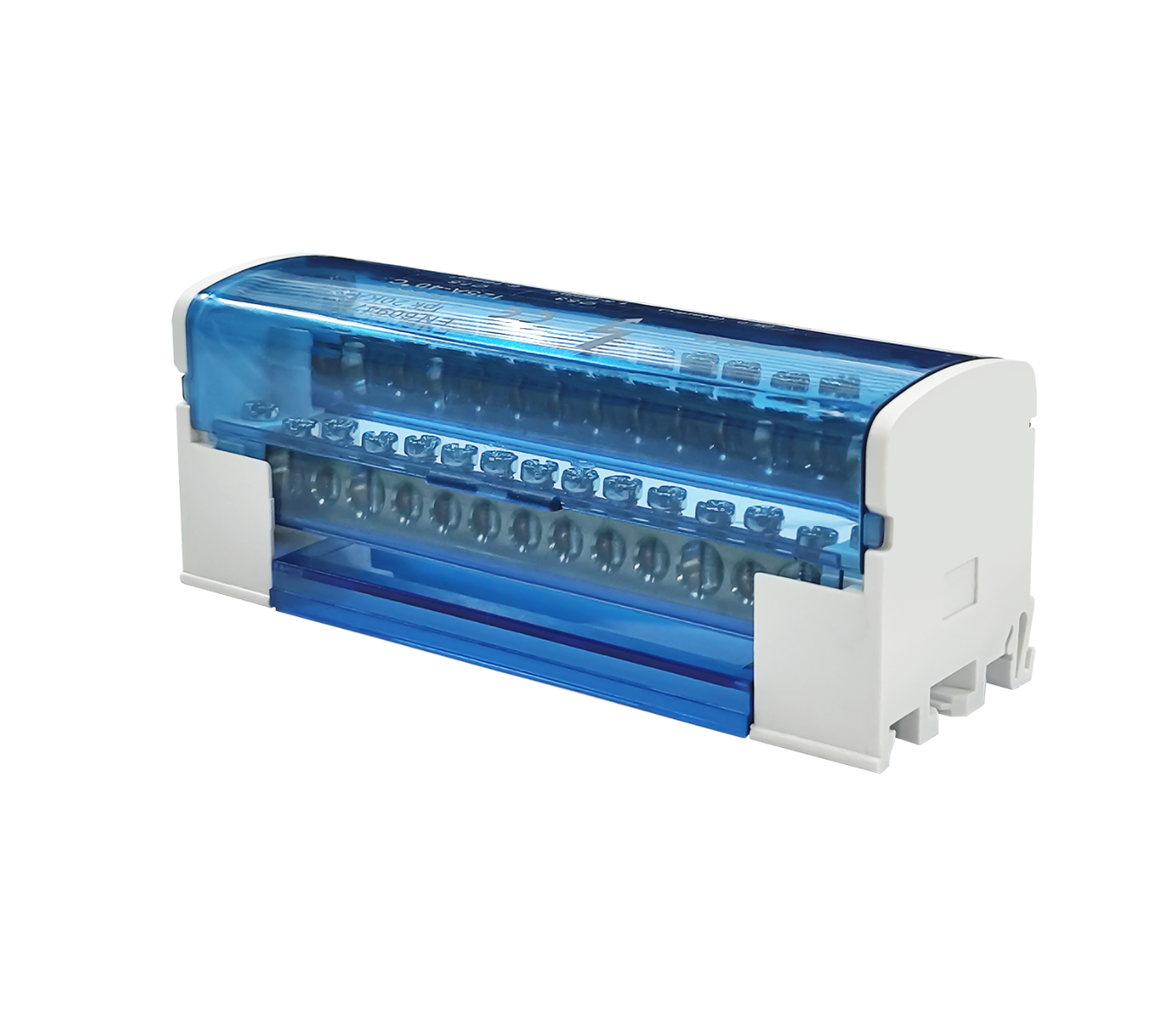

215 DIN Rail Terminal Distribution Module

215 DIN Rail Terminal Distribution Module

Electrical Performance

Rated 500V AC/DC and 125A current. Made of high purity brass conductive bar with superb conductivity. Low contact resistance ensures safe and stable power supply for multi-branch circuits.

Structural Feature

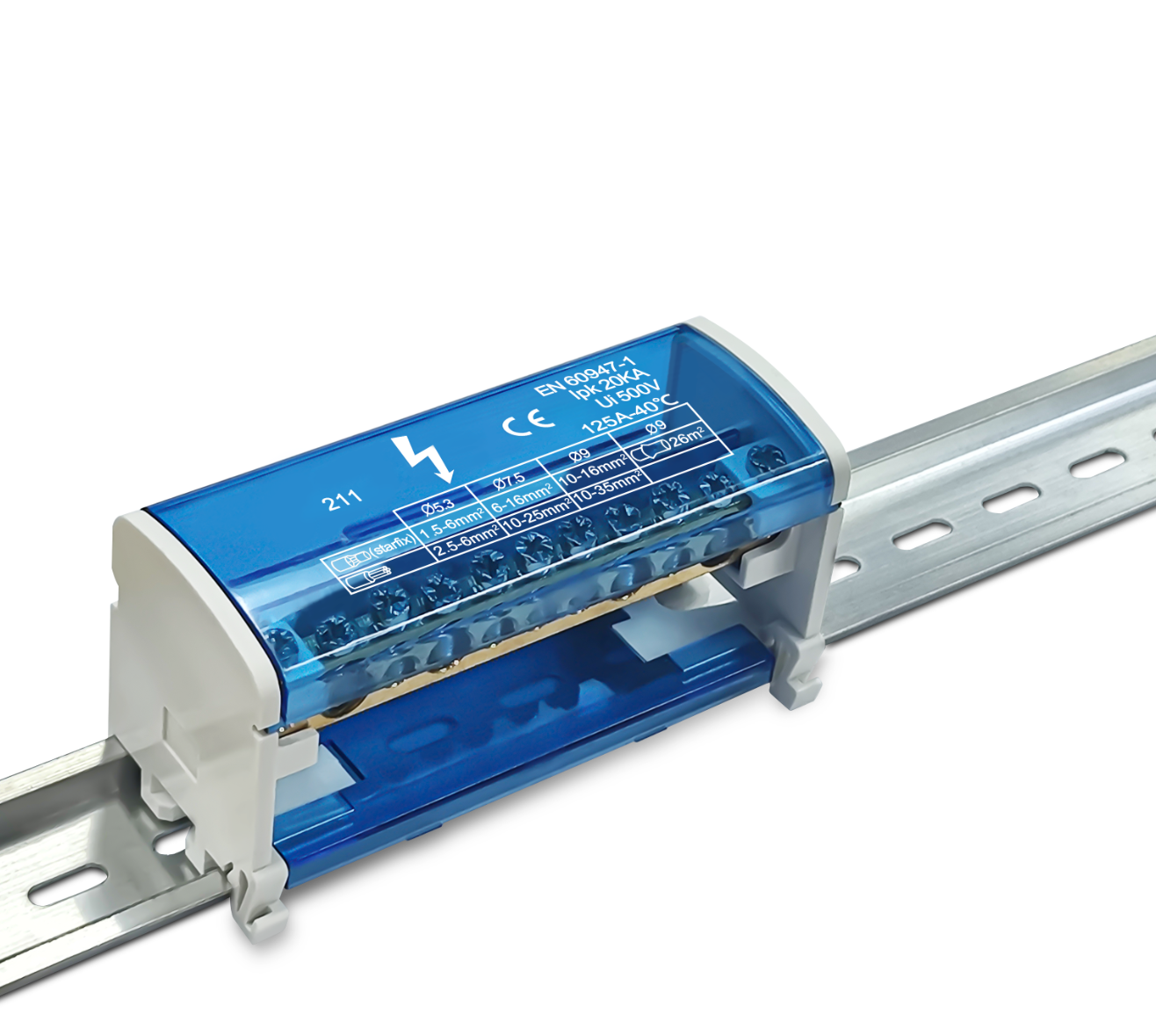

2 main input ports and 30 output terminals, ideal for large-scale power distribution. Fits standard NS35 din rail for easy mounting. Equipped with transparent protective cover for insulation and dust prevention. Screw tightening design fixes wires firmly against vibration and loosening.

Safety & Application

Adopts high-grade flame-retardant insulating material with good heat resistance and insulation performance. Long service life and stable performance. Widely used in power distribution boxes, industrial control cabinets and various electrical equipment for centralized power distribution.

Number of contact points：51 – 60                            conductor size：21 – 30 AWG

type：Power distribution                                            country of origin：Zhejiang, China

model：215, Din rail terminal block                           brand：LULEI

Product number：215                                                  Material：PC shell&Brass conductor

Current/Voltage：125A/500V                                   Phase：2

Working temps：-40~+65°C                                      Mounting Type：DIN Rail NS 35

Other items：207 211 407 411 415 413                    Certification：ISO9001/CQC/CE/RoHS
