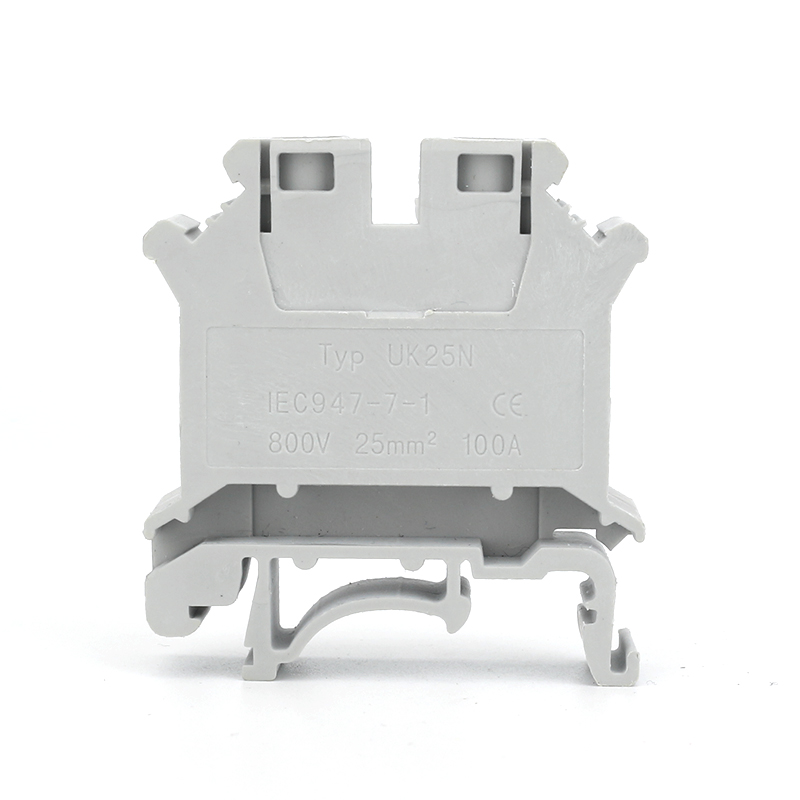

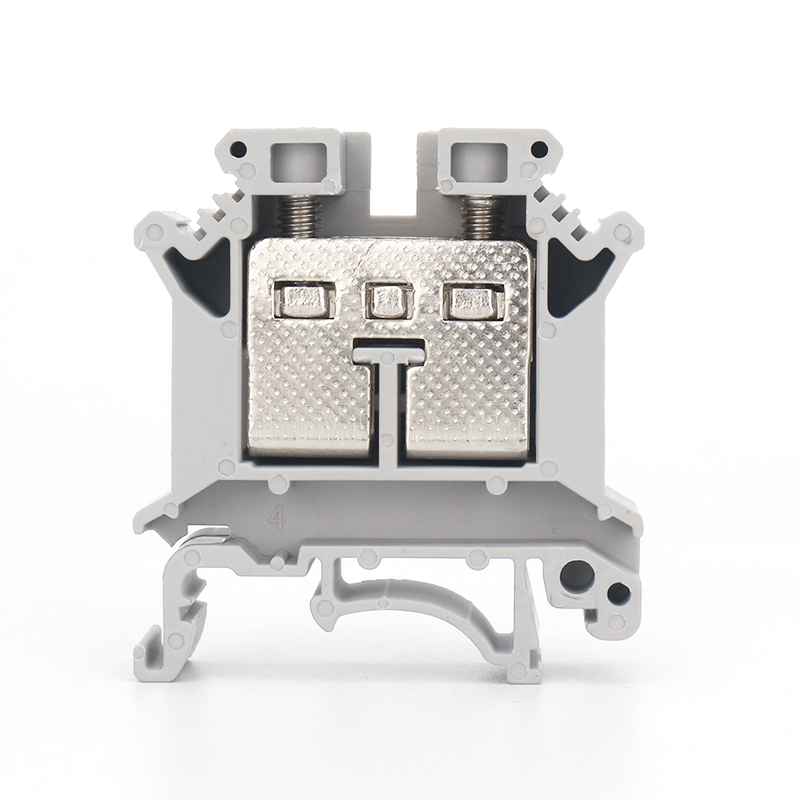

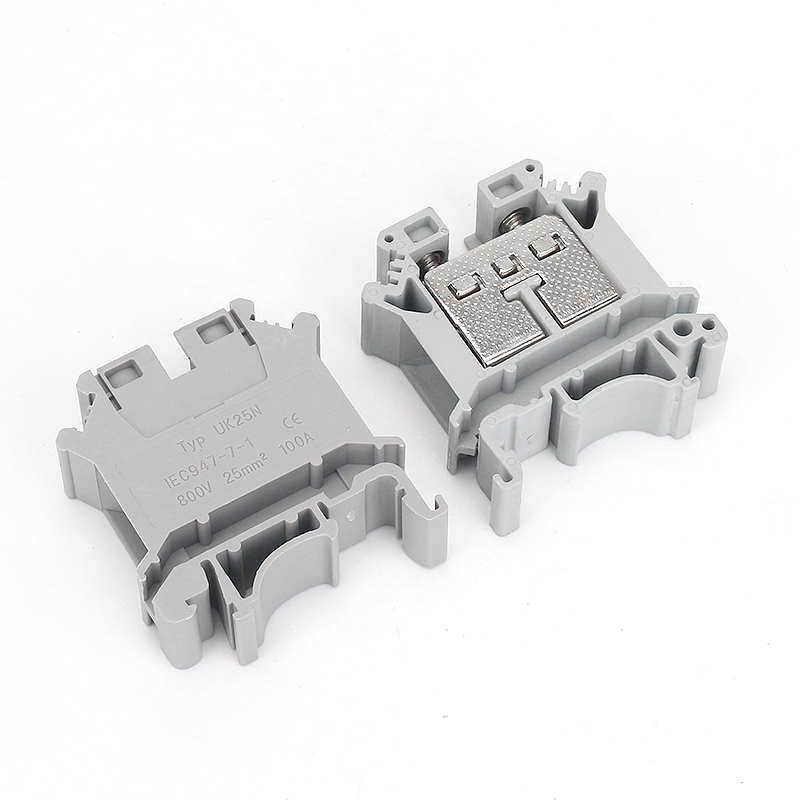

UK25N Screw-Type Terminal Block DIN Rail Wire Connector
Stable Electrical Performance
UK25N is a screw-type DIN rail terminal block for 25mm² wire connection. High-quality brass conductive parts ensure low contact resistance, strong current carrying capacity and stable power transmission for low-voltage industrial circuits.
Reliable Screw Clamping
Adopts classic screw locking structure to fix wires firmly. Anti-loose and anti-vibration design avoids poor contact, suitable for long-term continuous operation. Simple wiring and easy maintenance.
Standard DIN Rail & High Safety

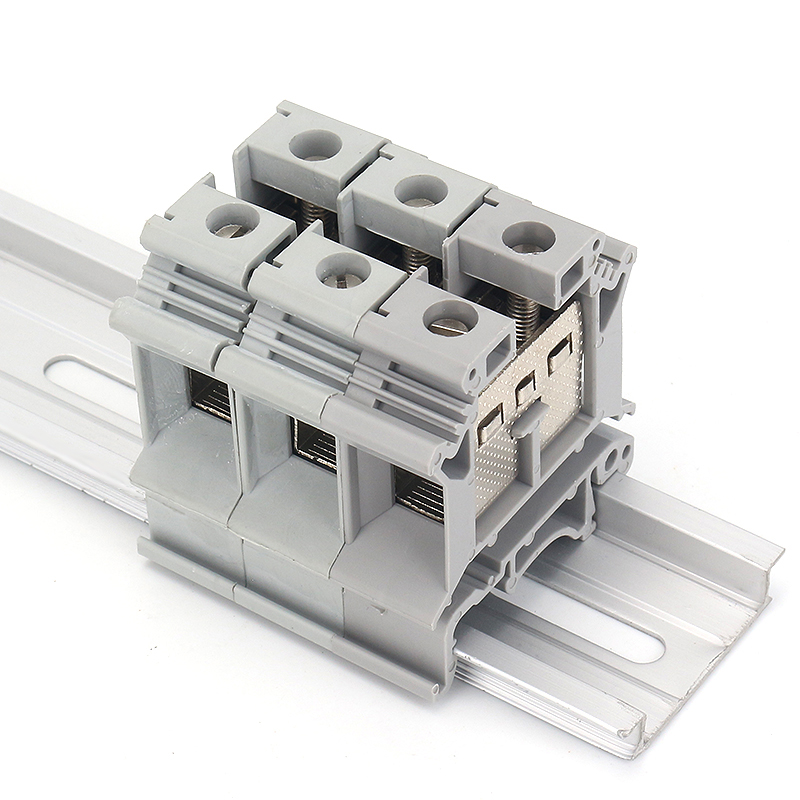

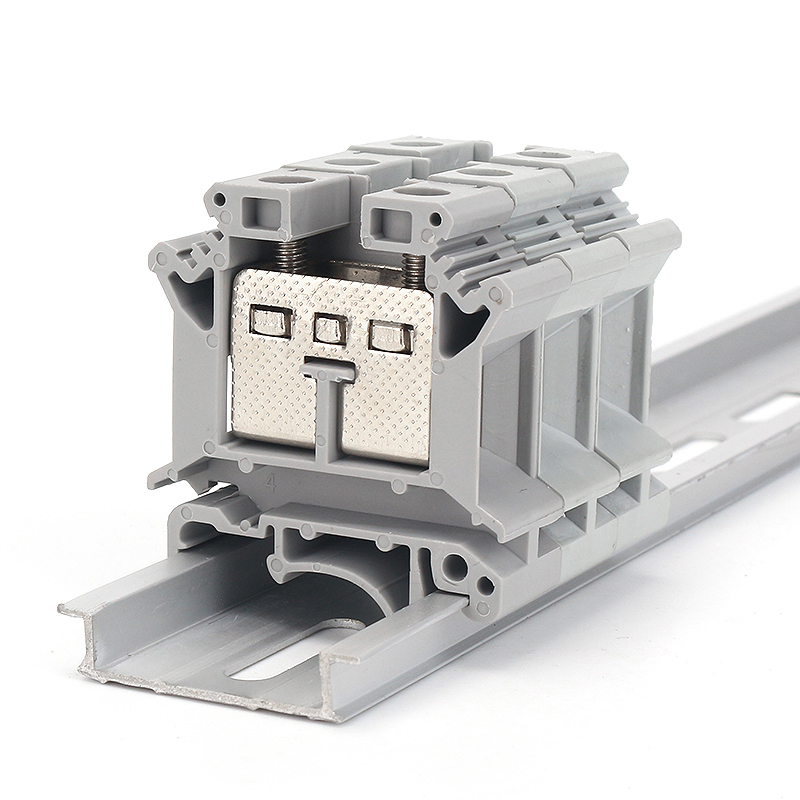

Compatible with standard NS35 DIN rail for quick mounting. Flame-retardant insulating housing provides excellent voltage resistance and heat resistance. Widely used in distribution cabinets, control systems and industrial electrical wiring.
Maximum continuous current：110 Number of contact points：1 – 10
conductor size：AWG12-4 Connection method：Screw connection
type：Screw terminal Number of electrodes：other
Contact material：brass application：Connecting wires
country of origin：Zhejiang, China model：UK25N
brand：WBR color：grey
Material：Nylon PA66 Dimensions (Length * Height * Thickness)：42.5*46.2*14.3
cross section：10-25 square millimeters Installation type：Inner diameter 35/7.5
Sales Unit：Multiples of 30 Packaging Details：30g/piece, 30 pieces/box, export carton
Single package size：2*16*5 (cm) Packaging size：21.7*13.2*5.8
