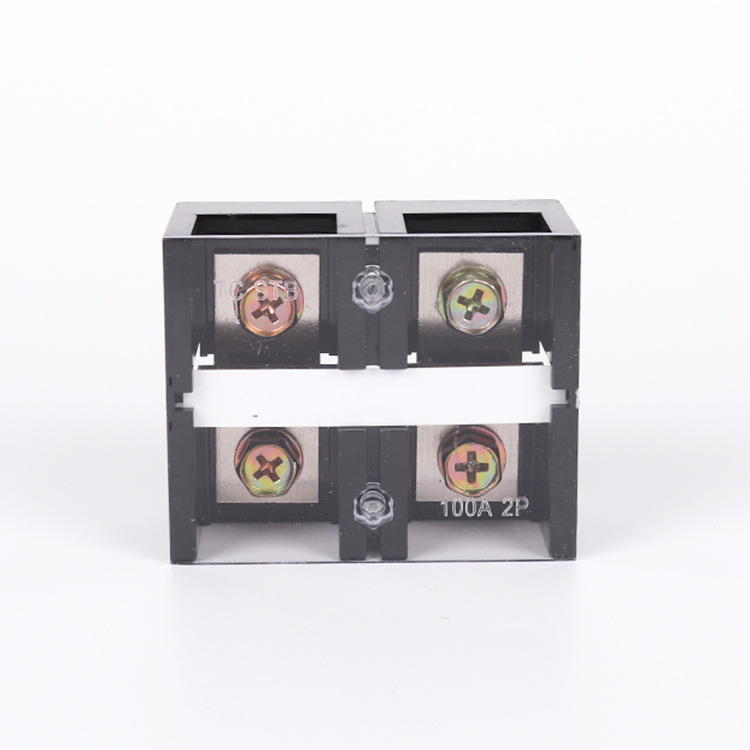

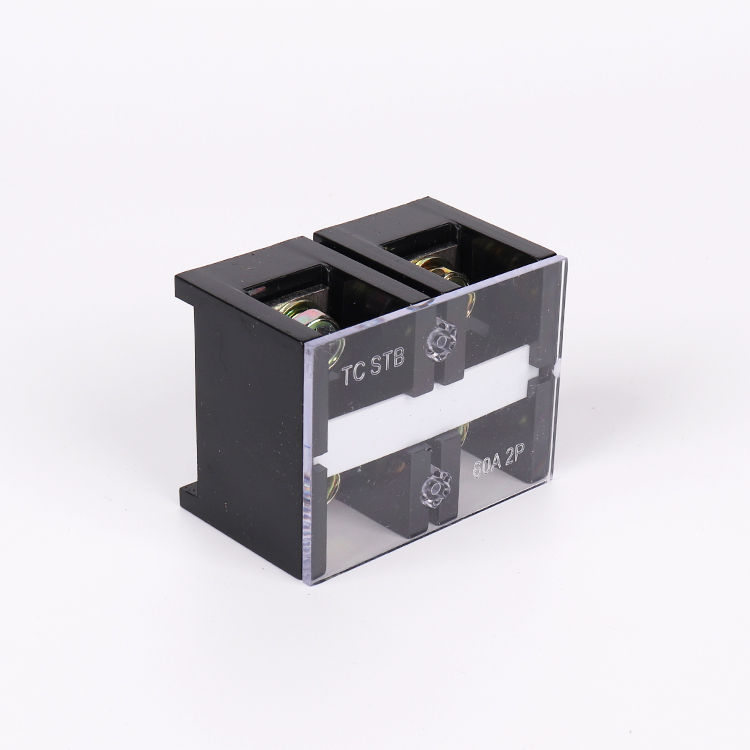

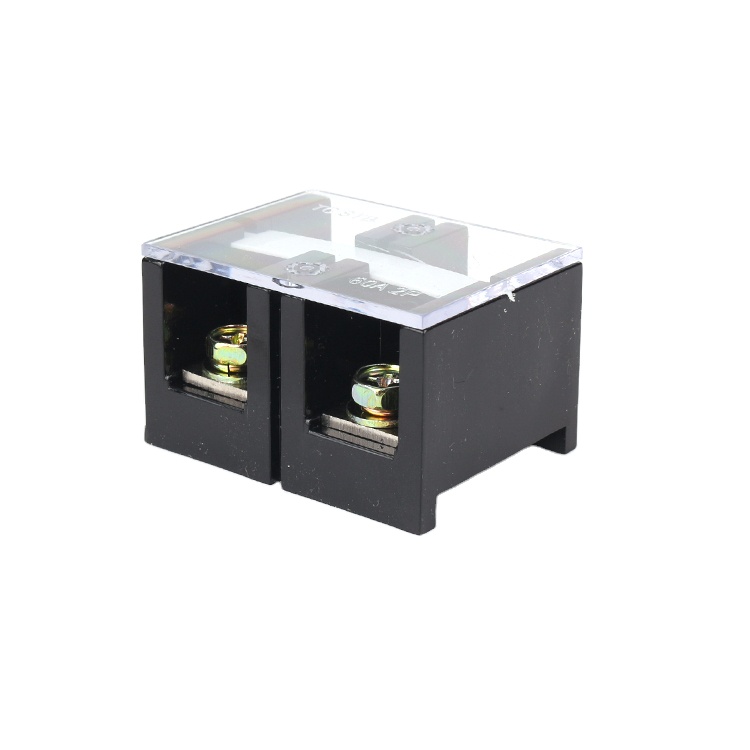

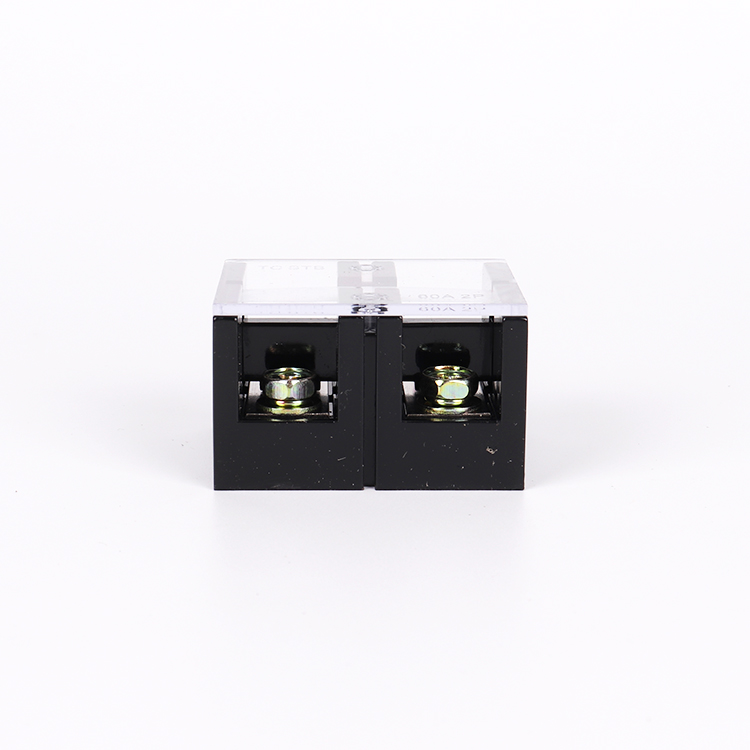

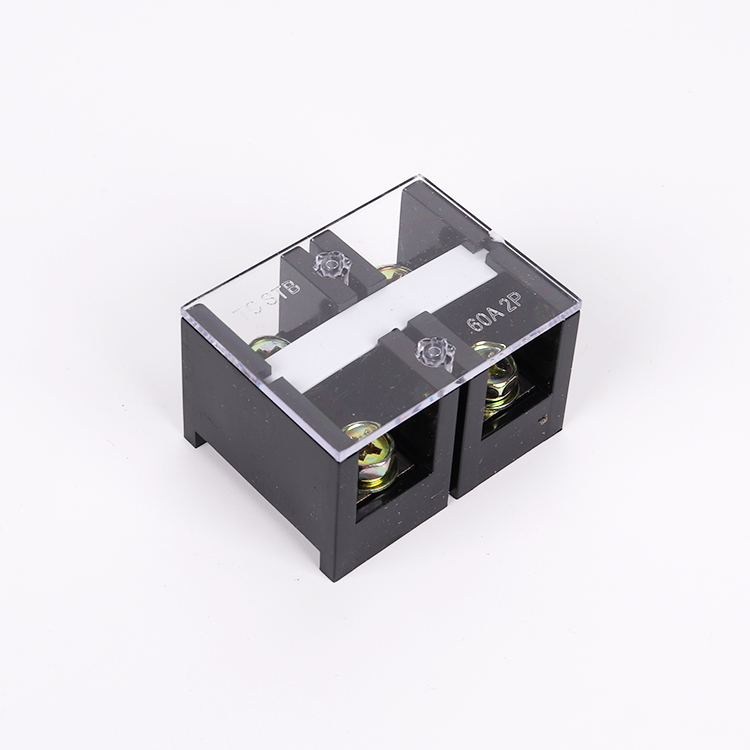

TC-602 Fixed Terminal Block

TC-602 Fixed Terminal Block

Electrical Performance

TC-602 fixed terminal block delivers steady conductive performance. Adopts high quality brass conductive components with low contact resistance, supporting stable current transmission for conventional low voltage circuits.

Structural Feature

It features fixed integrated structure with standard screw clamping design. Wires can be firmly fastened to prevent loosening caused by vibration. Simple wiring process brings convenient assembly and routine inspection.

Safety & Application

Constructed with flame-retardant insulating material, possessing reliable insulation and heat resistant ability. Sturdy build guarantees long service life. Commonly applied in household electrical appliances, junction boxes and general electrical distribution connections.

---

Number of contact points：1 – 10                                        Connection method：Screw connection

type：screw                                                                            Number of electrodes：2

Contact material：copper                                                     application：wire connection

country of origin：Zhejiang, China                                      model：TC STB-602

brand：LULEI                                                                      Product Name：TC series fixed terminals

color：black                                                                           Material：copper

Rated current：60 amps                                                    Rated voltage：600 volts

shell：computer                                                                   dust cover：PVC/Polycarbonate

fastener：iron
