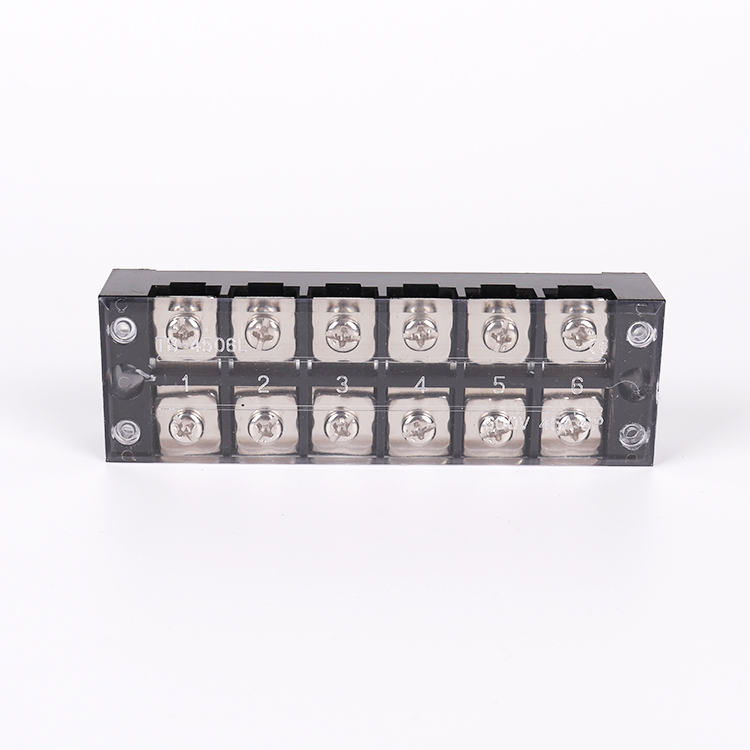

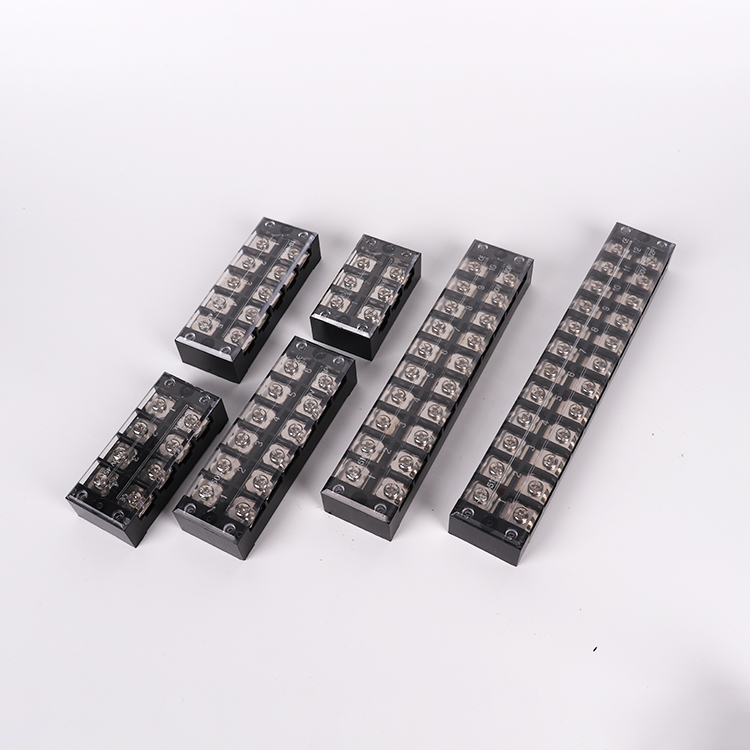

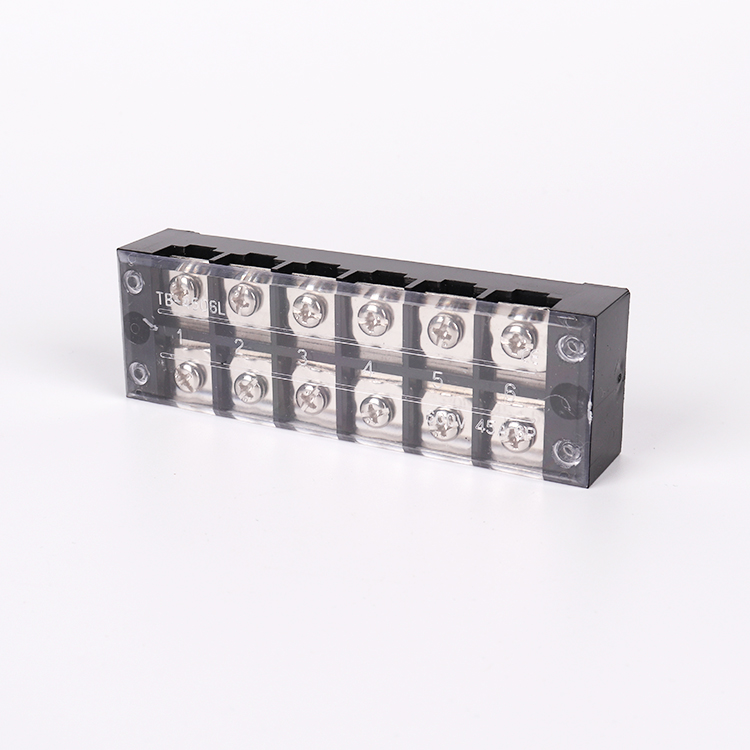

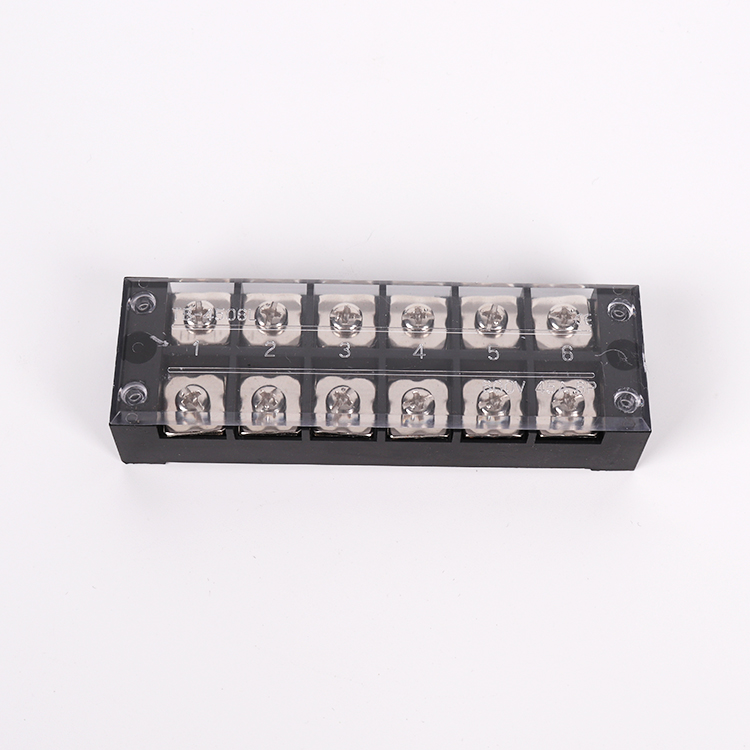

TB-4506 Fixed Terminal Block

Electrical Performance

This terminal block supports stable current transmission with reliable load capacity. Adopts high purity brass conductive cores, low contact resistance and great electric conductivity, ensures safe operation for conventional industrial and domestic circuits.

Structural Feature

Integrated fixed type structure with screw clamping mechanism. Wires can be fastened firmly to avoid loose connection under vibration. Reasonable pole design meets multi-line wiring demands, easy to install and conduct routine maintenance.

Safety & Application

Built with high strength flame-retardant insulation material, equipped with superior heat resistance and dielectric strength. Durable structure adapts to long-term working use. Widely applied in junction boxes, distribution cabinets and various electrical equipment wiring.

Maximum continuous current：45A Number of contact points：1 – 10

conductor size：11 – 20 AWG Connection method：Screw connection

type：Barrier Number of electrodes：6

Contact material：brass application：Wire connection, industrial, automotive

country of origin：Zhejiang, China model：TB-4506

brand：LULEI Product Name：TB Fixed Terminal Block

application：power industry Wire range：0.5-4 square millimeters

Rated voltage：600 volts Main material：ABS & PC Polyester

color：black Certificate：CE/EU RoHS/CQC/ISO 9001

custom made：OEM/OEM manufacturing
