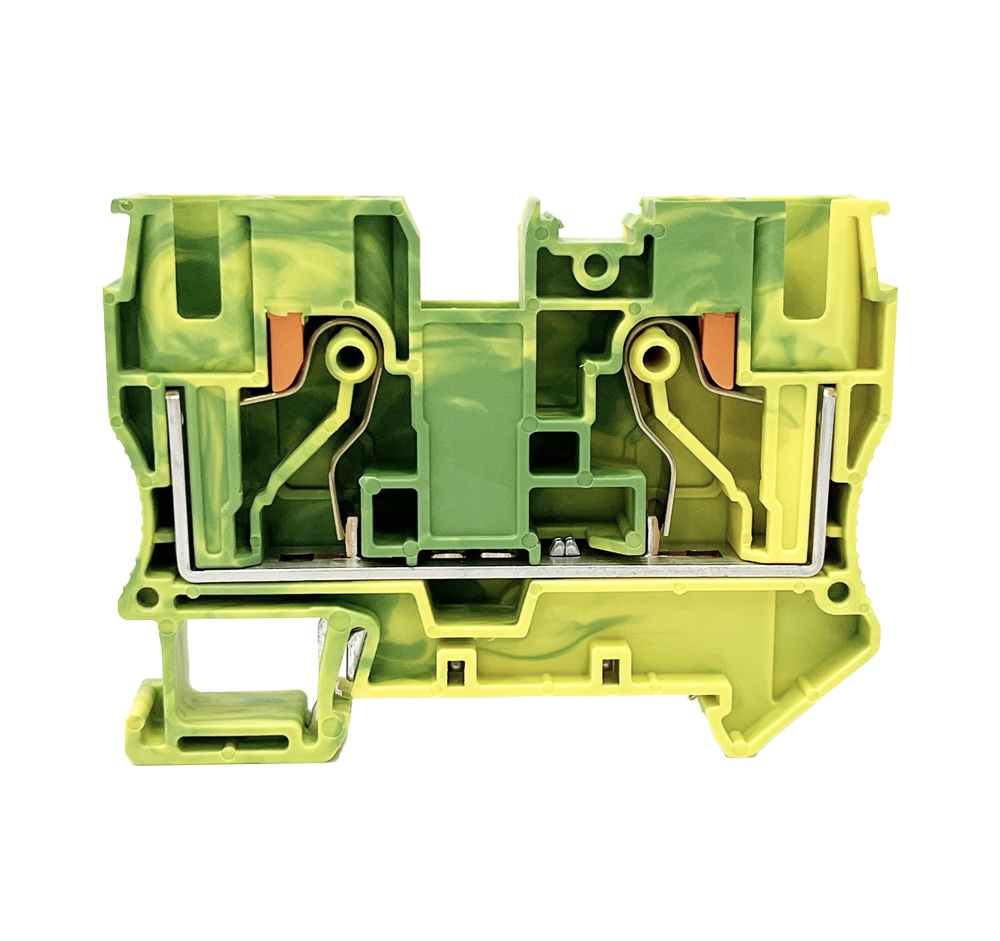

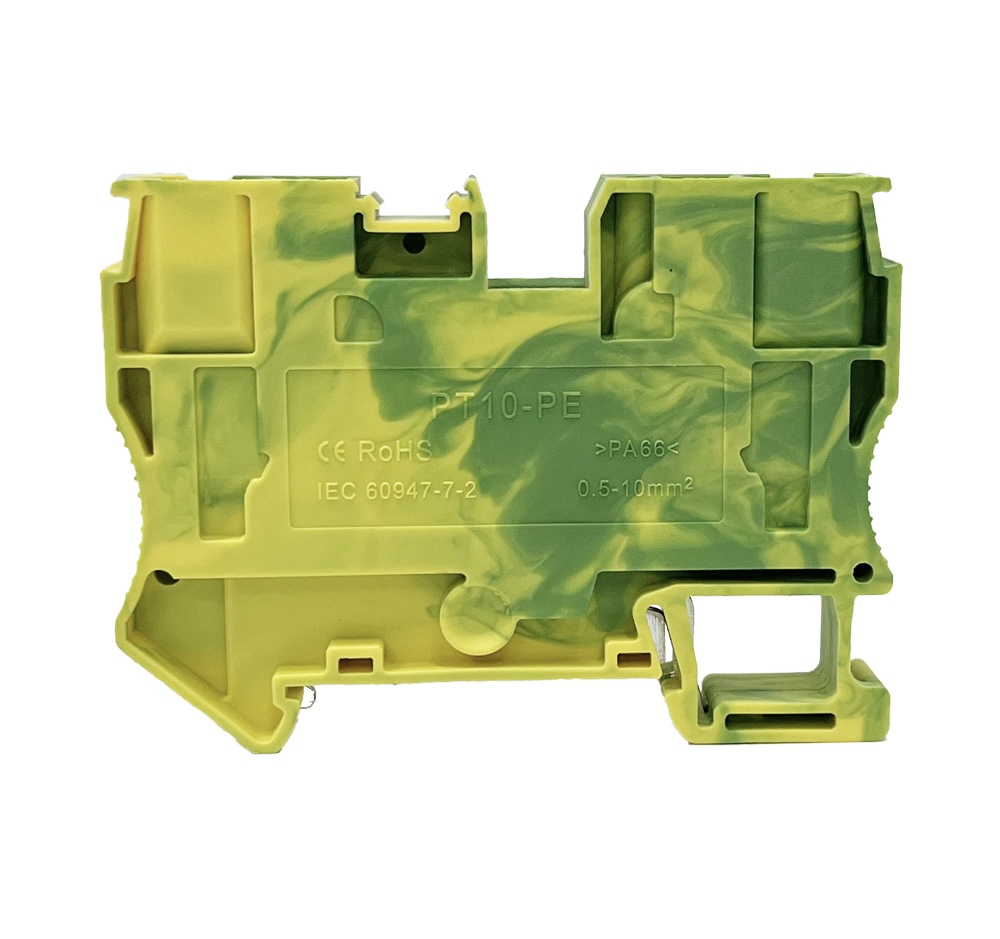

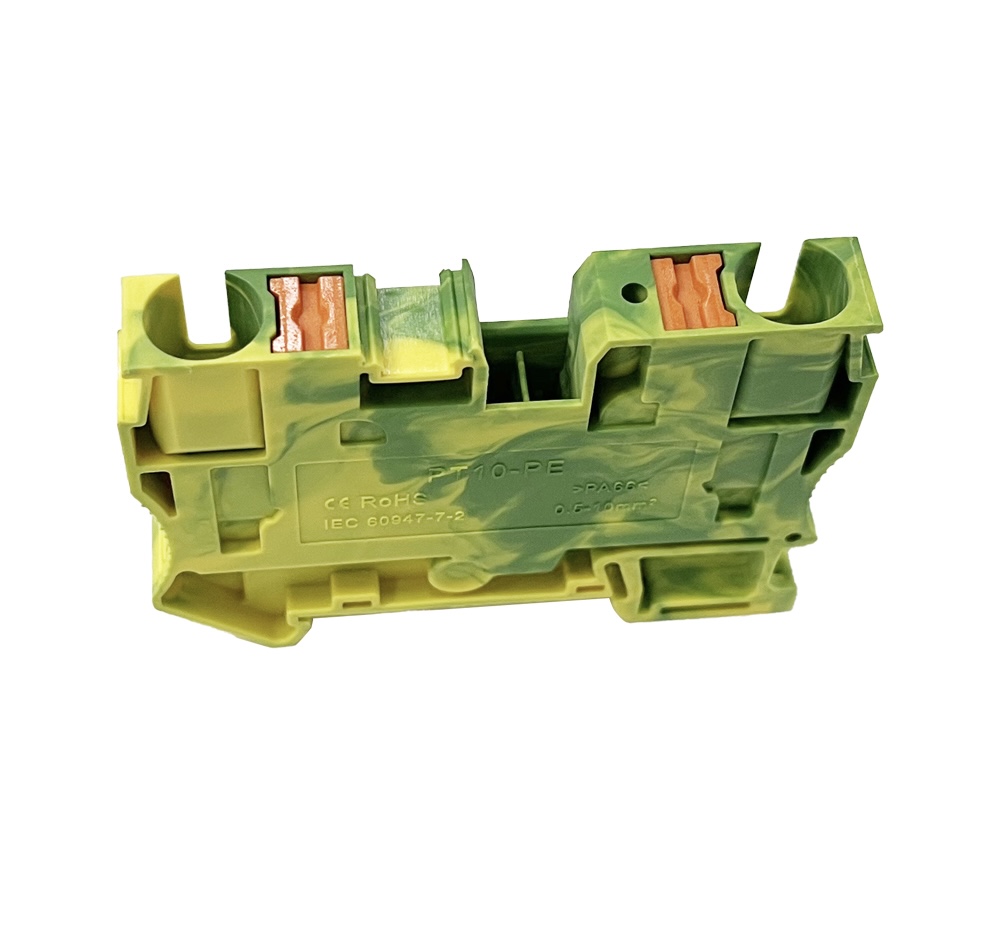

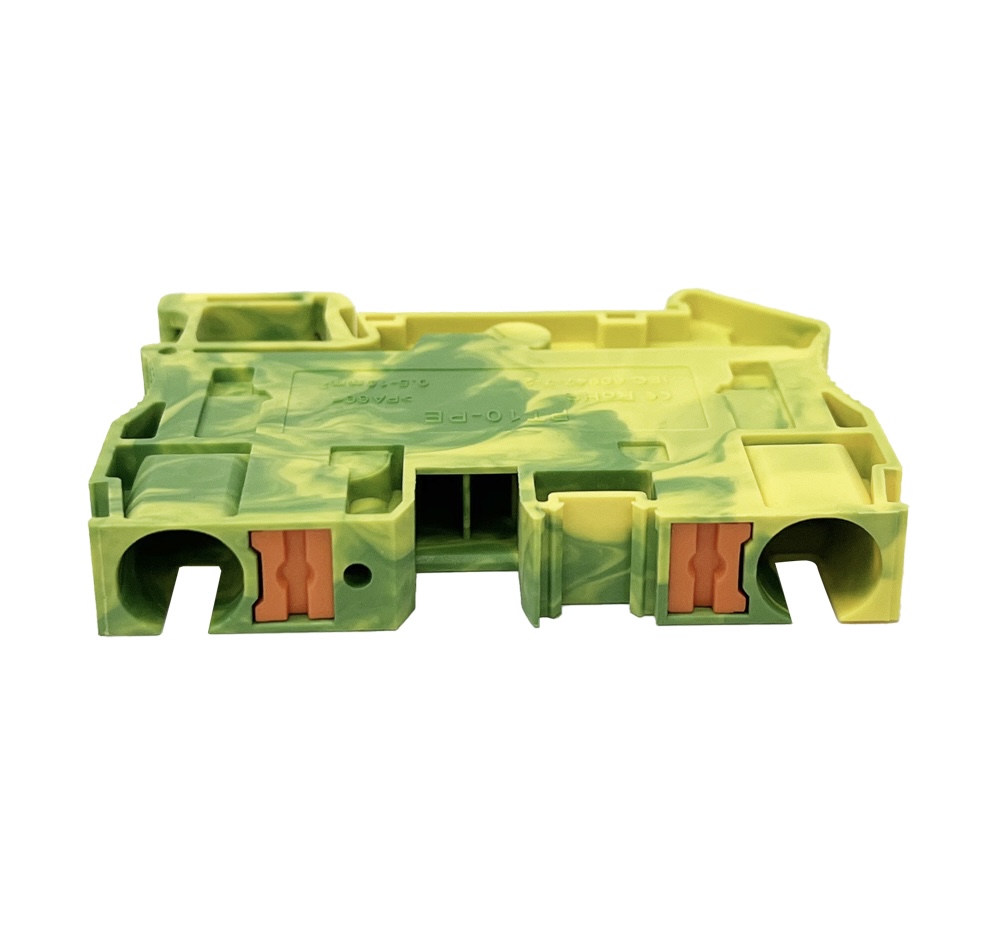

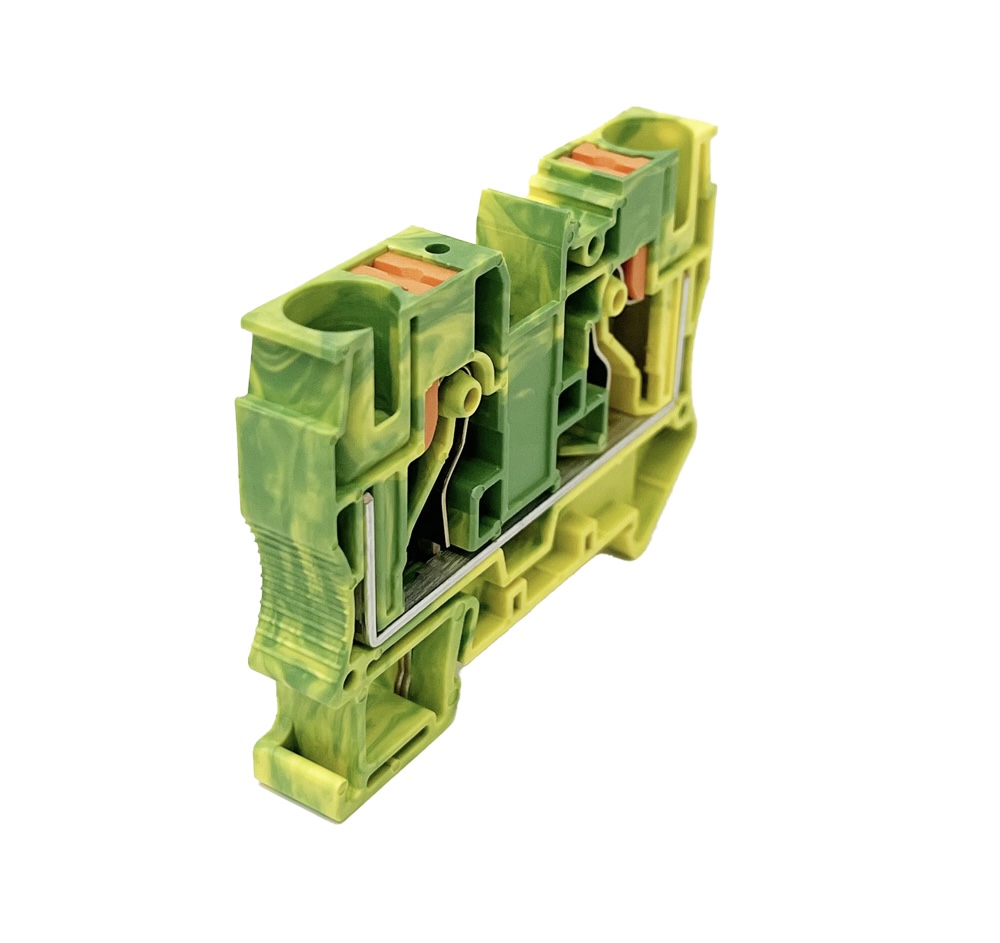

PT 10-PE Spring-Type Grounding Terminal Block
Specification & Rating
PT 10-PE is a spring-style DIN rail grounding terminal, suitable for 10mm² / 16mm² wire cross-section, meeting high-current grounding wiring needs.
Spring-Type Screwless Connection
Adopts premium spring cage structure, tool-free push-in wiring. Clamps wires firmly, vibration-resistant, stable conductive and easy for installation and maintenance.
Standard DIN Rail Mounting
Modular design for standard DIN rail installation, compact and space-saving. Flame-retardant insulated housing, widely used in power distribution cabinets, industrial control and equipment protective grounding systems.
Maximum continuous current：other conductor size：20 – 6 AWG
Connection method：Push-in connection type：Grounding terminal block
Number of electrodes：other Contact material：copper
country of origin：Zhejiang, China application：Spring-clamp terminal blocks, industrial, wire connection, automotive
model：PT 10-PE brand：KEERTE
Wire Range：10-16mm2 Product Name：PT In-Line Spring Terminal Block
Material：Red Copper Insulation Material：PA66
Color：Yellow Green Length/Wide/Height (mm)：67.7*10.2*49.5mm
Packing：50pcs/box Certificate：CE/RoHS/CQC/ISO 9001
