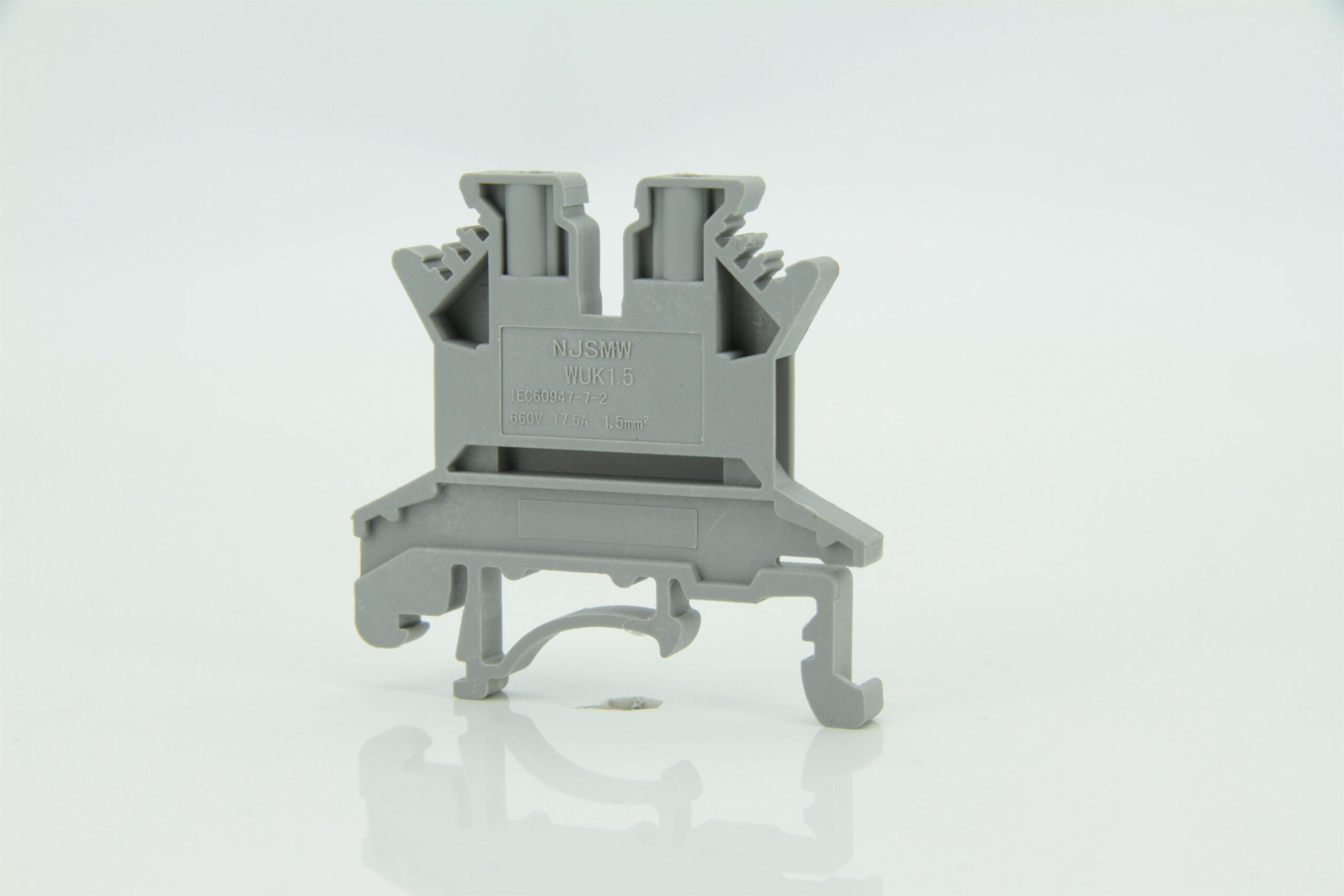

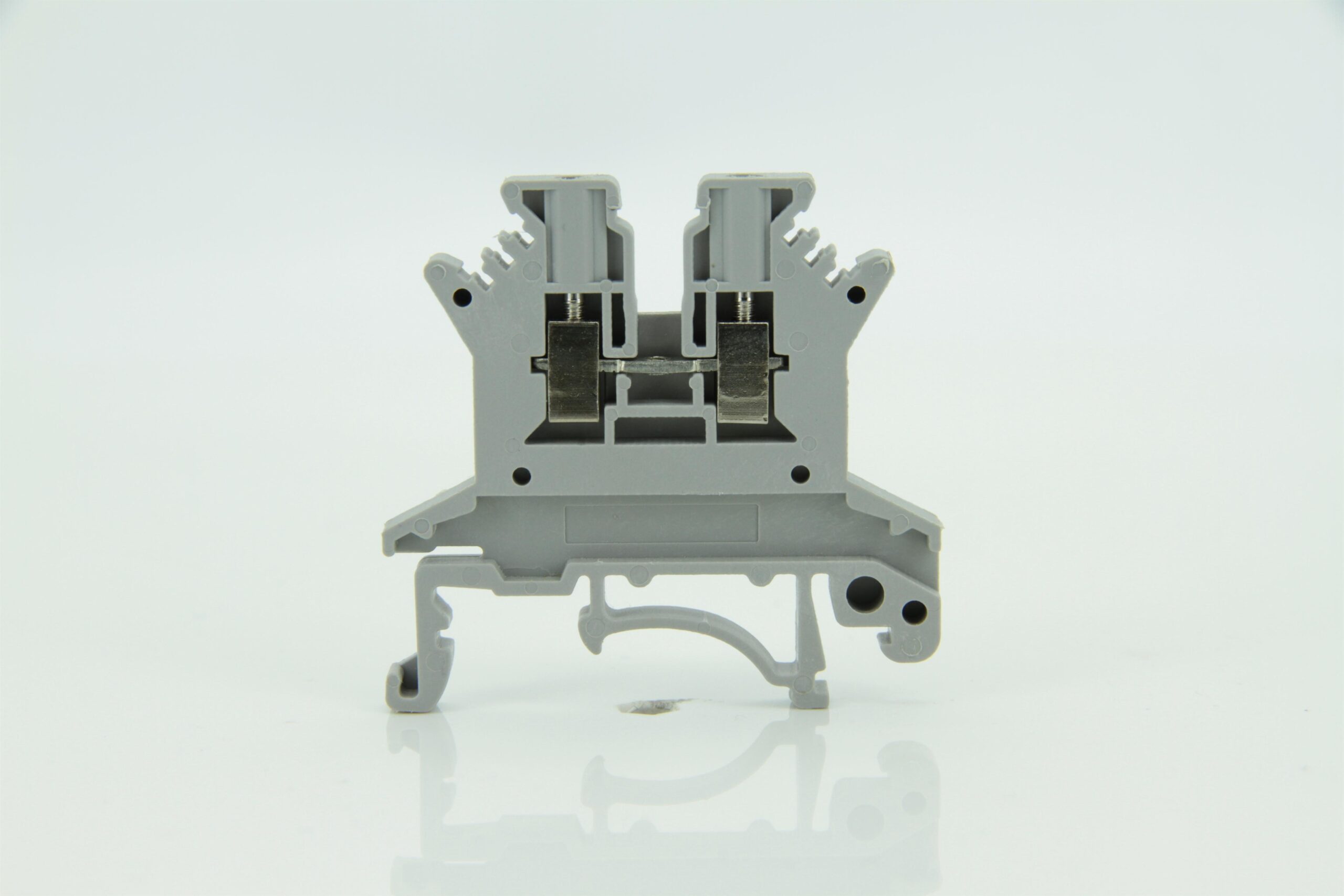

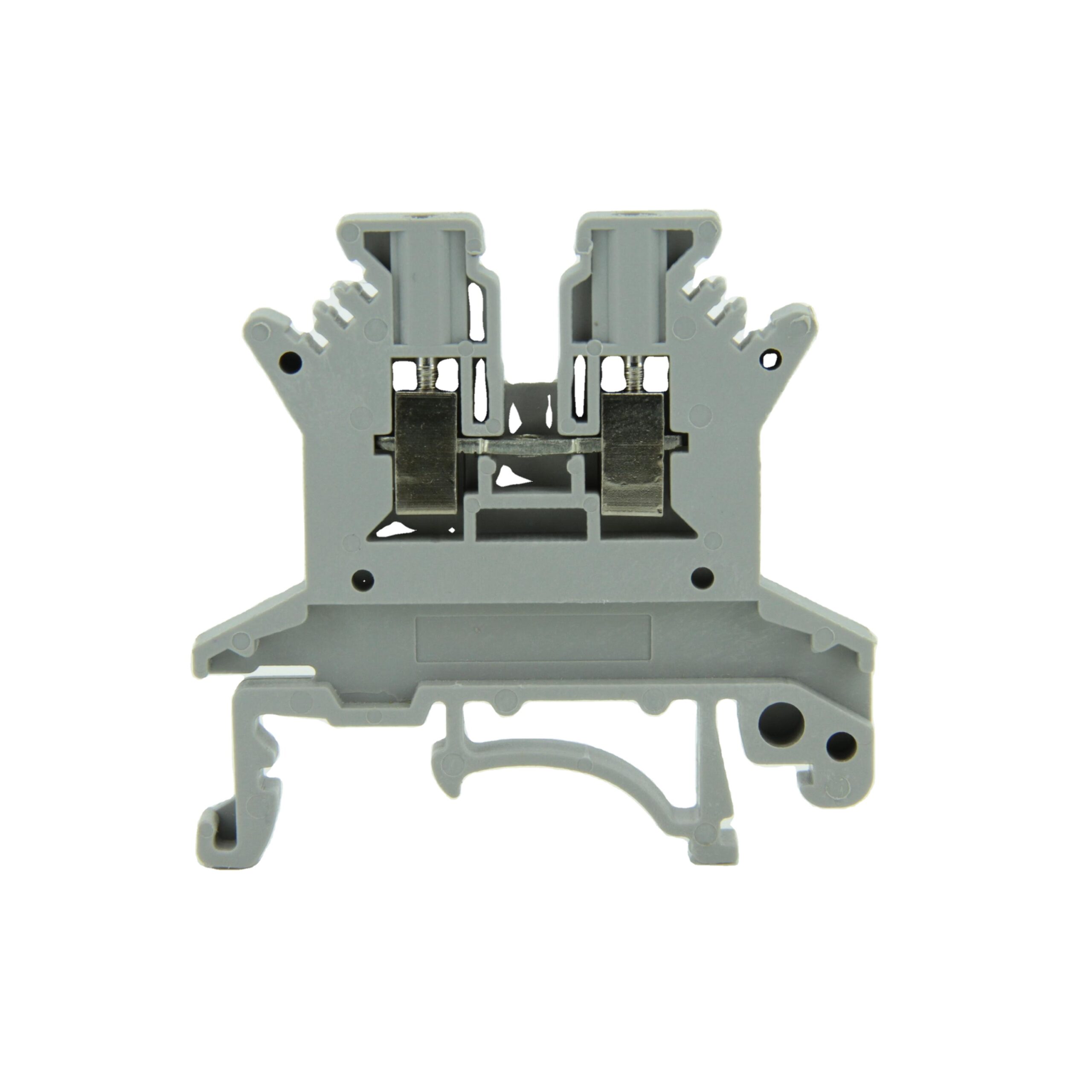

NJSMW WUK1.5N DIN Rail Terminal Block
High Voltage & Current Rating
Rated 660V and 17.5A, this feedthrough terminal block adapts to high-voltage working environments with stable electrical performance.
Reliable Screw Clamp Connection
Adopts premium screw clamp structure to lock wires tightly. Anti-loose design guarantees safe and long-term circuit connection.

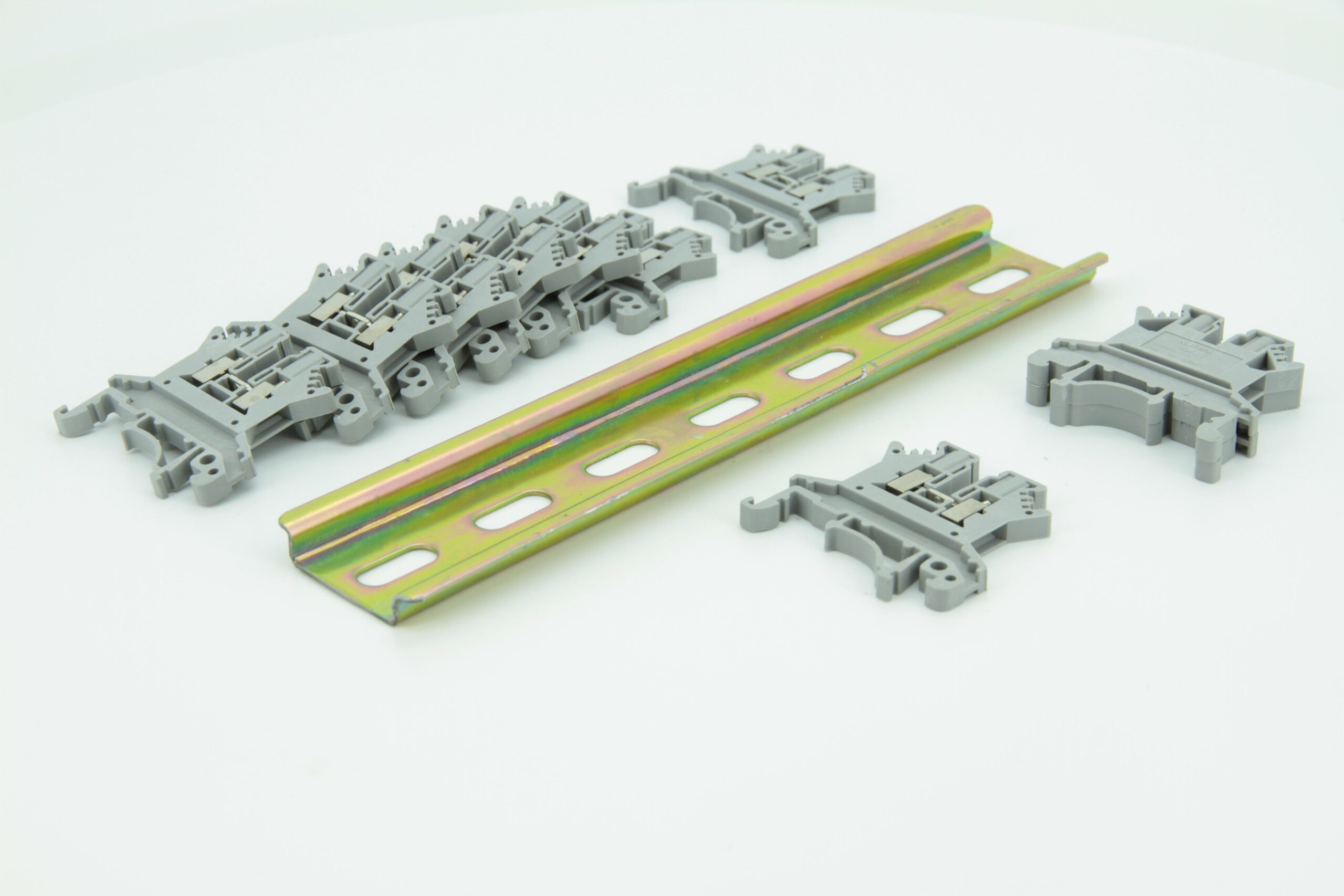

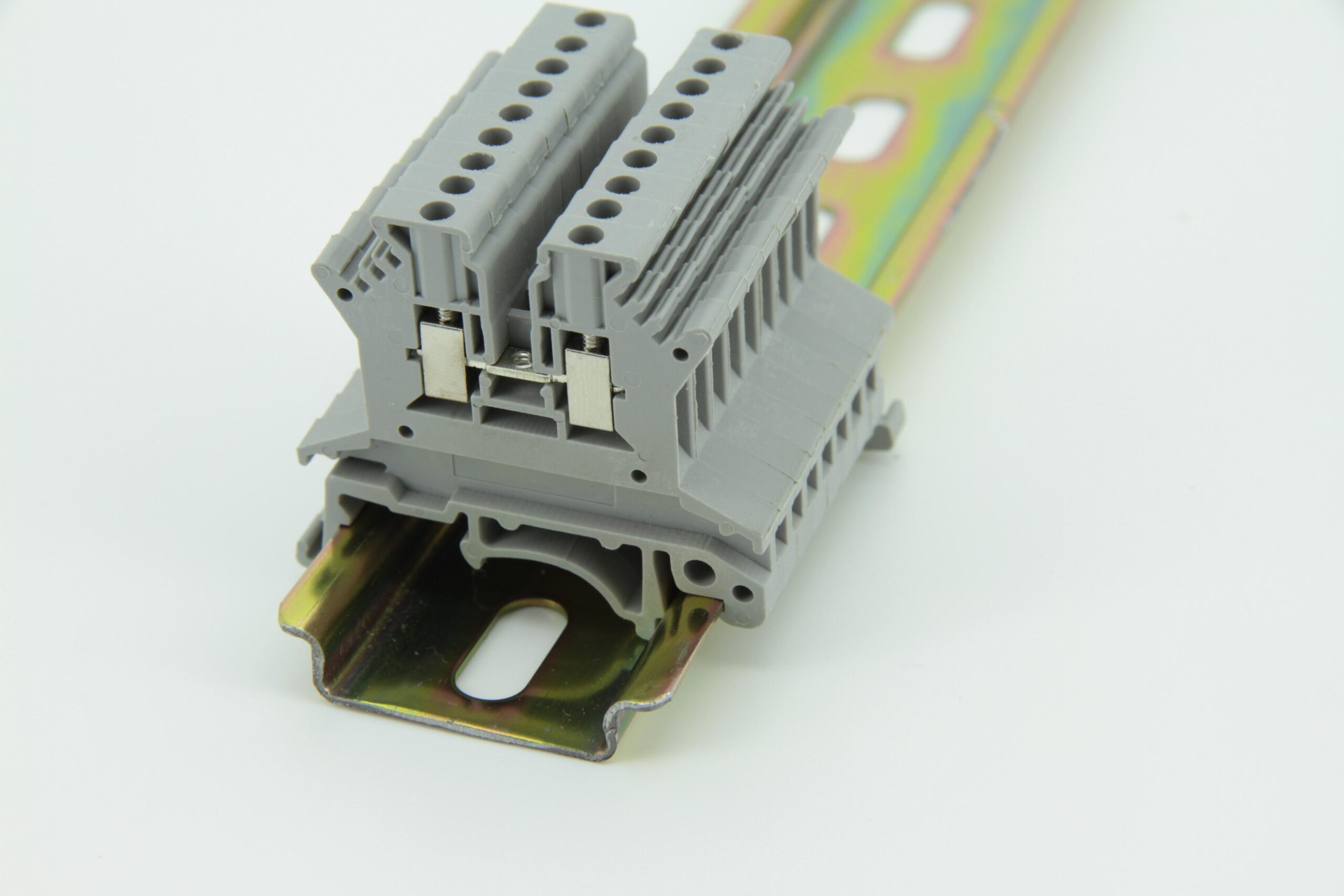

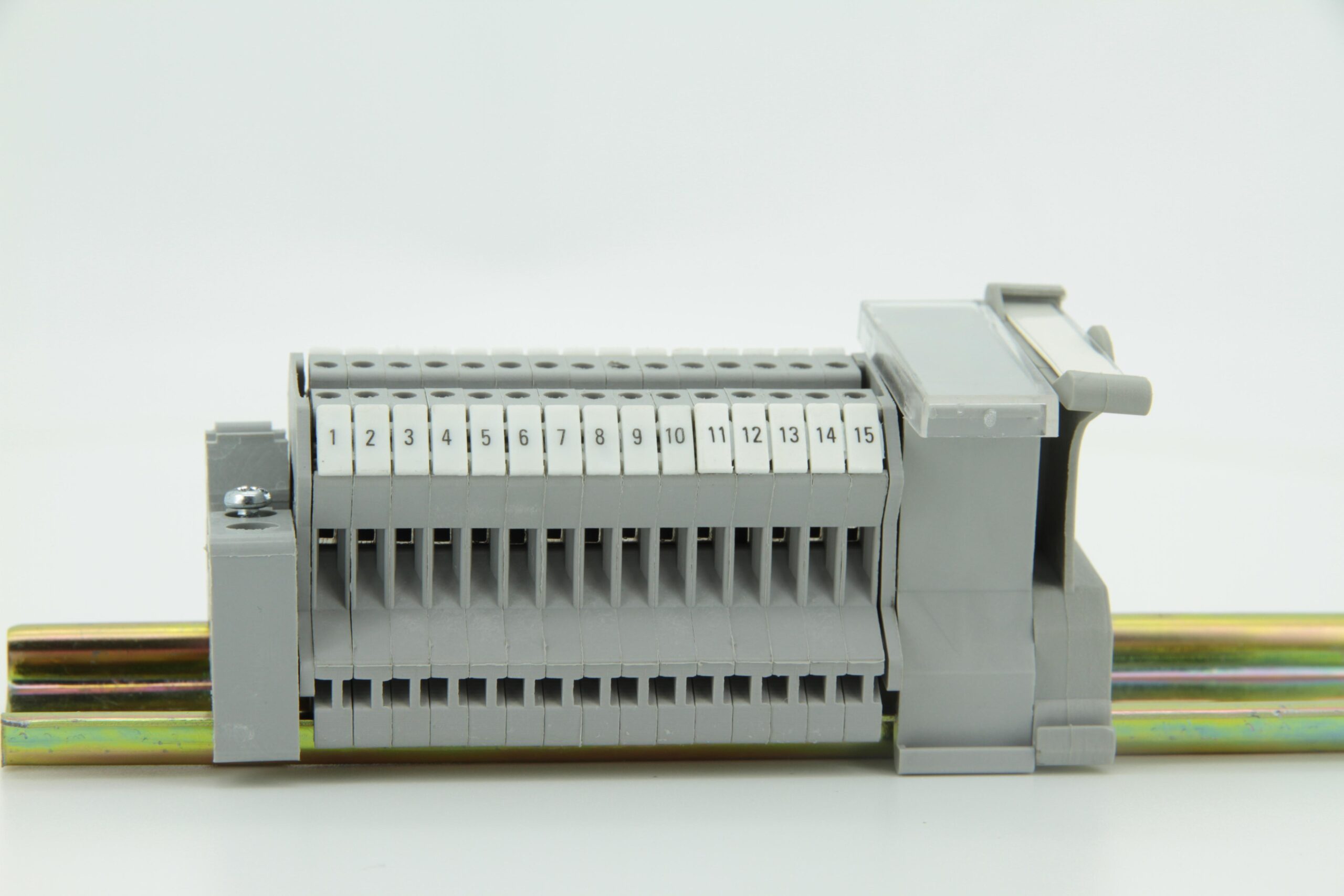

Standard DIN Rail Design
Modular DIN rail mounting for quick installation. Compact structure, widely used in industrial power distribution and control wiring.
Maximum continuous current：17.5A Number of contact points：1 – 10
conductor size：5 – 10 AWG Connection method：Screw connection
type：screw Number of electrodes：2
Contact material：brass application：industry
country of origin：Zhejiang, China model：WUK1.5N
brand：NJSMW Product name：WUK1.5N terminal Block
Material：Nickel Plated Brass Conductor Application：Power Distribution Panel
Certificate：ROHS/CE/CQC/ISO9001 Rated voltage：660V
Current：17.5A Size：4.2mm x 42.5mm x 40.5mm(L*W*H)
Screw thread：M2 Nominal cross section：1.5 mm²
Striping Length：7mm
